Evertz 7814UDX-2 Series | Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Video Processing: Provides two independent conversion paths in a single 2-slot module for high-density broadcast workflows.
Multi-Format Conversion: Supports up, down, and cross conversion for 3G-SDI, HD-SDI, and SD-SDI signals; 3G support on -3G models.
Advanced Video Processing: Features motion-adaptive 3D noise reduction and advanced de-interlacing for improved signal clarity.
AFD & Aspect Ratio Control: Supports standard and custom ARC modes with frame-accurate, glitch-free SMPTE 2016 AFD steering and stamping.
Frame Synchronization & Genlock: Includes independent frame synchronizers with software-selectable card and dual-frame reference inputs.
Comprehensive Audio & Dolby Processing: Handles 16 embedded audio channels with auto-tracking delay, 5.1-to-stereo downmix, optional AES I/O (-AES8), IntelliGain® (+IG2), and Dolby processing (-DAP).
Flexible I/O & Remote Control: Supports standard BNC and optional SFP optical I/O (-F), with VistaLINK® SNMP management via Evertz frame controllers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

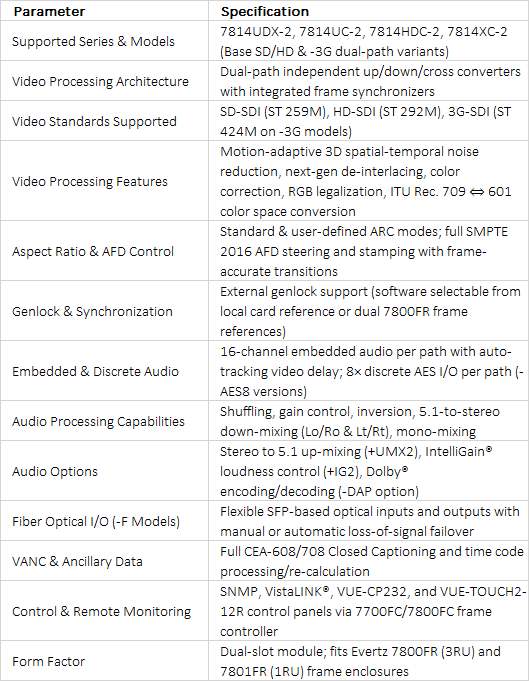

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Path Video Processing

The Evertz 7814UDX-2 series (including 7814UC-2, 7814HDC-2, and 7814XC-2 variants) provides professional dual-channel up, down, and cross conversion within a single 7800-series modular slot footprint. Designed for high-density broadcast facilities, production trucks, and playout centers, each card processes two entirely separate video streams simultaneously. It seamlessly converts between SD-SDI (SMPTE ST 259), HD-SDI (SMPTE ST 292-1), and 3G-SDI (SMPTE ST 424M on -3G models). Equipped with motion-adaptive 3D noise reduction and next-generation de-interlacing algorithms, the 7814UDX-2 series eliminates motion artifacts and preserves fine image detail.

Color Legalization, Aspect Ratio Conversion, and VANC Data

Each processing path includes full broadcast-quality color correction and detail enhancement controls. The module automatically executes ITU Rec. 709 ⇔ 601 color space conversions and enforces RGB color legalization to prevent gamut violations. For aspect ratio management, the card offers both preset and custom ARC modes governed by frame-accurate Active Format Description (AFD / SMPTE 2016) code reading and stamping. Additionally, the unit passes and translates CEA-608/708 closed captioning and ancillary timecode with automatic recalculations across frame rate and format boundaries.

Advanced Audio Infrastructure and Flexible I/O

The card processes 16 channels of embedded audio per path, automatically matching audio delay to video processing latency while allowing user-defined audio offset delays. Standard audio capabilities feature gain control, phase inversion, channel shuffling, and 5.1-to-stereo (Lo/Ro and Lt/Rt) downmixing. Expanded audio and video options include:

Discrete AES I/O (-AES8 Versions): Adds 8 discrete AES input and 8 discrete AES output pairs per path for external audio routing.
Advanced Audio Processing (+UMX2, +IG2, -DAP): Offers optional 2-channel to 5.1 surround sound upmixing (+UMX2), Evertz IntelliGain® automatic loudness control (+IG2), and integrated Dolby® decoding and encoding (-DAP).
Optical SFP Transceivers (-F Versions): Integrates pluggable SFP transceiver sockets for direct optical fiber inputs and outputs, featuring automatic or manual failover between coaxial BNC and optical interfaces.
