Evertz 7814UDX-2 Series | Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual Independent Processing: Provides two standalone up/down/cross conversion channels within a single 2-slot module.
Multi-Format Conversion: Supports SD-SDI (SMPTE ST 259), HD-SDI (SMPTE ST 292-1), and 3G-SDI (SMPTE ST 424M on -3G versions).
Advanced Video Processing: Features motion-adaptive 3D noise reduction and next-generation de-interlacing to minimize motion artifacts and preserve detail.
Aspect Ratio & AFD Control: Supports standard/user-defined ARC modes with frame-accurate AFD (SMPTE 2016) reading and stamping.
Frame Synchronization & Genlock: Provides independent frame synchronizers per path with selectable card or dual 7800FR frame reference sources.
Comprehensive Audio Processing: Supports 16-channel auto-delay tracking, 5.1-to-stereo downmixing, optional 8x AES I/O per path (-AES8), IntelliGain® (+IG2), and Dolby® processing (-DAP).
Flexible Fiber & Coaxial I/O: Supports optional pluggable SFP transceiver sockets (-F) for optical connectivity, coaxial BNCs, and automatic failover switching.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

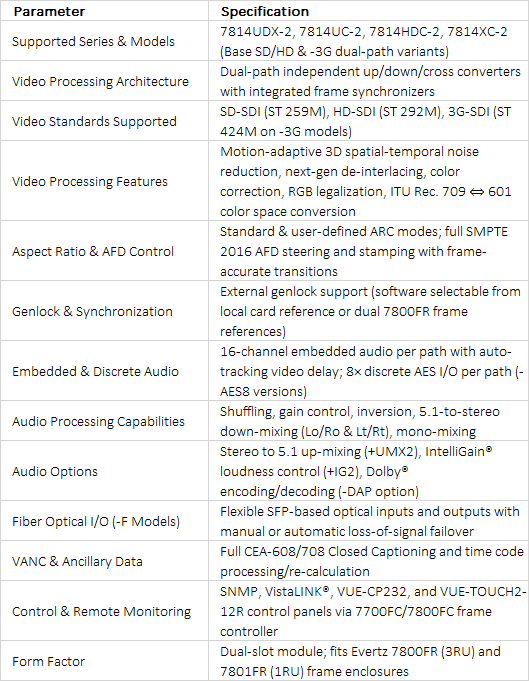

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Channel Video Conversion

The Evertz 7814UDX-2 series (including 7814UC-2, 7814HDC-2, and 7814XC-2 variants) delivers flexible dual-path video up, down, and cross conversion in a compact 2-slot card format for Evertz 7800FR and 7801FR chassis. Designed for broadcast infrastructure, live event production trucks, and playout facilities, each module processes two distinct video streams simultaneously. It handles conversion across SD-SDI, HD-SDI, and 3G-SDI formats while leveraging motion-adaptive 3D spatial-temporal noise reduction and advanced de-interlacing engines to eliminate motion artifacts and preserve picture resolution.

Frame Synchronization, Color Legalization, and VANC Data

Integrated frame synchronizers on both signal paths enable precise video alignment against external card genlock or frame reference inputs. The module features full broadcast-quality SDR color correction, detail enhancement, and RGB color legalization to prevent signal clipping. It automatically manages ITU Rec. 709 ⇔ 601 color space conversions. For active video framing and VANC metadata, the series supports standard and user-defined aspect ratio conversions (ARC), frame-accurate AFD (SMPTE 2016) code processing, and full CEA-608/708 closed caption and timecode translation with automatic timestamp recalculations.

Advanced Audio Routing, Fiber Optics, and System Control

The 7814UDX-2 series processes 16 channels of embedded audio per channel with automatic video-delay tracking and full proc amp controls, including channel shuffling, phase inversion, and 5.1-to-stereo (Lo/Ro and Lt/Rt) downmixing. The module offers several expanded I/O and processing options:

Discrete AES I/O (-AES8 Versions): Provides 8 discrete AES input and 8 discrete AES output pairs per path for external audio integration.
Advanced Audio Processing (+UMX2, +IG2, -DAP): Supports optional stereo-to-5.1 surround upmixing (+UMX2), Evertz IntelliGain® loudness management (+IG2), and integrated Dolby® decoding/encoding (-DAP).
Optical SFP Transceivers (-F Versions): Enables software-selectable input switching between coaxial BNC and optical SFP transceivers, alongside dual-output optical SFPs.
VistaLINK® Remote Management: Monitored and configured via VistaLINK® SNMP software, VUE-CP232, or VUE-TOUCH2-12R control panels when installed alongside a frame controller module.
