Evertz 7814UDX-2 Series | Dual Path 3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual Independent Processing: Provides two standalone up/down/cross conversion channels within a single 2-slot module.
Multi-Format Conversion: Supports SD-SDI (SMPTE ST 259), HD-SDI (SMPTE ST 292-1), and 3G-SDI (SMPTE ST 424M on -3G versions).
Advanced Video Processing: Features motion-adaptive 3D noise reduction and de-interlacing for improved artifact reduction.
Aspect Ratio & AFD Control: Supports standard/custom ARC modes with frame-accurate AFD (SMPTE 2016) reading and stamping.
Frame Synchronization & Genlock: Provides independent frame synchronizers per path with selectable card or dual 7800FR frame reference sources.
Comprehensive Audio Processing: Supports 16-channel auto-delay tracking, 5.1-to-stereo downmixing, optional 8x AES I/O per path (-AES8), IntelliGain® (+IG2), and Dolby® processing (-DAP).
Flexible Fiber & Coaxial I/O: Supports optional SFP transceiver sockets (-F) for optical connectivity, coaxial BNCs, and automatic failover switching.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

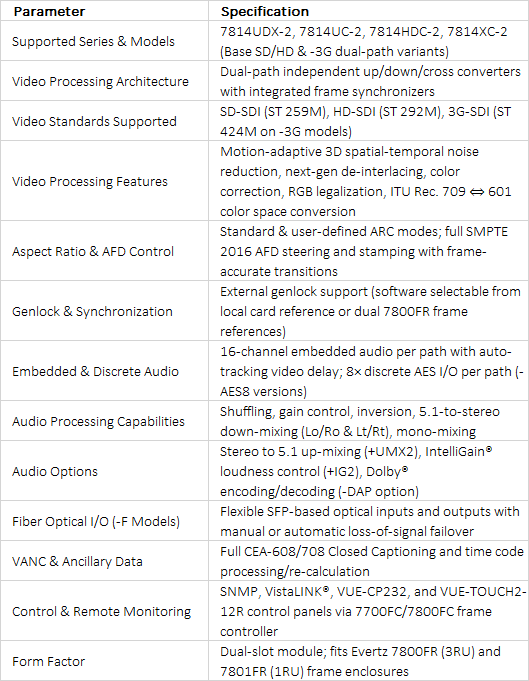

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Channel Video Conversion

The Evertz 7814UDX-2 series (including 7814UC-2, 7814HDC-2, and 7814XC-2 variants) provides professional dual-path video up, down, and cross conversion in a compact 2-slot card format for Evertz 7800FR and 7801FR frames. Engineered for high-density broadcast environments, live production trucks, and playout facilities, each card processes two entirely independent video streams simultaneously. It seamlessly scales and converts between SD-SDI, HD-SDI, and 3G-SDI formats. Powered by advanced motion-adaptive 3D spatial-temporal noise reduction and next-generation de-interlacing engines, the card preserves maximum spatial resolution while eliminating motion artifacts.

Frame Synchronization, Color Legalization, and VANC Data

Built-in frame synchronizers on each path ensure precise video timing alignment against external card genlock or frame reference sources. Integrated video processing includes full broadcast-quality color correction, detail enhancement, and RGB color legalization to keep signals strictly within gamut limits. The module automatically executes ITU Rec. 709 ⇔ 601 color space conversions. For active video framing and VANC metadata, the series provides standard and user-defined aspect ratio conversions (ARC), frame-accurate AFD (SMPTE 2016) code processing, and full CEA-608/708 closed caption and timecode translation with automatic recalculations.

Advanced Audio Infrastructure, Fiber Optics, and Remote Management

The 7814UDX-2 series processes 16 channels of embedded audio per channel with video-tracking audio delay and full audio proc amp capabilities, including channel shuffling, phase inversion, and 5.1-to-stereo (Lo/Ro and Lt/Rt) downmixing. The platform offers expanded audio and connectivity options:

Discrete AES I/O (-AES8 Versions): Adds 8 discrete AES input and 8 discrete AES output pairs per path for flexible external routing.
Advanced Audio Processing (+UMX2, +IG2, -DAP): Supports optional stereo-to-5.1 surround upmixing (+UMX2), Evertz IntelliGain® loudness management (+IG2), and integrated Dolby® decoding/encoding (-DAP).
Optical SFP Transceivers (-F Versions): Enables software-selectable input failover between coaxial BNC and optical SFP transceivers, alongside dual-output optical SFPs.
VistaLINK® SNMP Control: Fully monitored and configured via VistaLINK® software, VUE-CP232, or VUE-TOUCH2-12R control panels when combined with a frame controller module.
