Evertz 7814UDX-4K / 7814UC-4K / 7814HDC-4K / 7814XC-4K Series UHD/12G/3G/HD Up/Down/Cross Converter with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

UHD / 12G Multi-Format Conversion: Supports HD, 3G, and 12G/UHD up, down, and cross conversion.
Flexible 4K Architecture: Supports Square Division (SQD) and Two-Sample Interleave (2sI) 4K/UHD formats.
HDR & WCG Processing: Provides low-latency SDR, HLG, PQ/ST 2084, and S-Log3 transforms across BT.709, BT.2020, and S-Gamut3.
Advanced Video Processing: Includes 3D spatial-temporal noise reduction and next-generation de-interlacing.
Quad-Input Frame Synchronization: Synchronizes multi-link 4K inputs to card reference or dual frame references.
16-Channel Audio Processing: Supports auto-tracking delay, channel routing, gain, inversion, mono mixing, and optional -AES8 8-channel AES I/O.
12G Coax & Fiber I/O: Supports -12G-HDBNC-R HD-BNC connectivity and optional -12G dual 12G-SDI SFP transceivers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Next-Generation UHD Broadcast Processing & Conversion

The Evertz 7814UDX-4K series is a high-density, broadcast-quality conversion platform designed to bridge HD, 3G, and 12G/UHD production environments. Built for dual-slot installation in Evertz 7800FR (3RU) and 7801FR (1RU) frames, the card supports up, down, and cross-conversion across HD-SDI (SMPTE ST 292M), 3G-SDI (SMPTE ST 424M), and 12G-SDI (SMPTE ST 2082) signals. The card natively manages both Square Division Quad-Split (SQD) and Two-Sample Interleave (2sI) 4K formats, ensuring complete compatibility across legacy and modern 4K production hardware.

High-Precision HDR Transformation & Color Correction

Equipped with optional +HDR and +VPROC software licenses, the 7814UDX-4K series provides low-latency, LUT-based HDR/SDR conversions and color space transformations. Operators can convert dynamically between BT.709, BT.2020, and S.Gamut3 gamuts while translating HDR transfer functions including HLG, SMPTE ST 2084 (PQ), and Sony S-Log3. Integrated broadcast-quality color correctors, detail enhancement engines, and RGB color legalizers allow real-time parameter adjustments to meet strict transmission standards.

Audio DSP, 12G Transport & System Control

The card transparently routes 16 channels of embedded audio, automatically adjusting audio delay to track video timing and maintain lip-sync alignment. Optional discrete AES I/O (-AES8) adds 8 external AES inputs and outputs per path. Signal transport options include dual 12G-SDI SFP modules (-12G) for fiber/coax transmission or an HD-BNC rear plate (-12G-HDBNC-R). Remote control, monitoring, and parameter configuration are executed via VistaLINK® SNMP or VUE control panels when paired with a 7800FC or 7801FC frame controller.

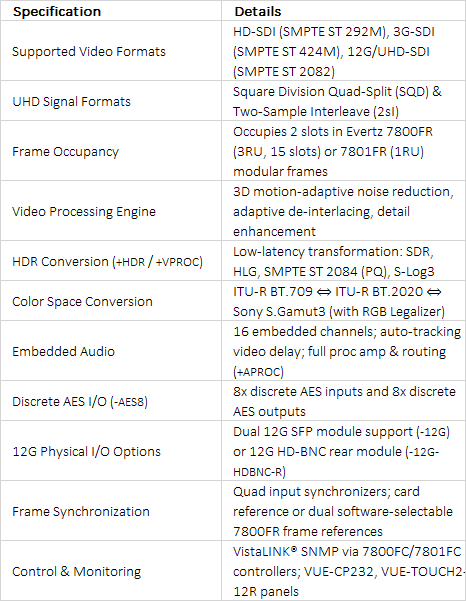

Technical Specifications +

technical specifications
