Evertz 7814UDX-4K / 7814UC-4K / 7814HDC-4K / 7814XC-4K Series UHD/12G/3G/HD Up/Down/Cross Converter with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

UHD / 12G Multi-Format Conversion: Supports up, down, and cross conversion between HD, 3G, and 12G/UHD formats.
Flexible 4K Architecture: Supports Square Division (SQD) and Two-Sample Interleave (2sI) 4K/UHD structures.
HDR & WCG Processing: Supports SDR, HLG, PQ/ST 2084, S-Log3, BT.709, BT.2020, and S-Gamut3 transformations with +HDR/+VPROC.
Advanced Video Processing: Includes 3D spatial-temporal noise reduction and next-generation de-interlacing.
Quad-Input Frame Synchronization: Synchronizes multi-link 4K signals to card genlock or dual frame references.
16-Channel Audio Engine: Provides video-delay tracking, routing, gain, inversion, mono mixing, and optional -AES8 8-channel AES I/O.
12G Coax & Fiber I/O: Supports -12G-HDBNC-R HD-BNC connectivity and optional -12G dual 12G-SDI SFP transceivers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Next-Generation UHD Broadcast Processing & Conversion

The Evertz 7814UDX-4K series is a high-density, broadcast-grade conversion module designed to unify HD, 3G, and 12G/UHD production workflows. Engineered to occupy two slots in Evertz 7800FR (3RU) and 7801FR (1RU) frames, the card converts between HD-SDI (SMPTE ST 292M), 3G-SDI (SMPTE ST 424M), and 12G-SDI (SMPTE ST 2082) signals. The platform seamlessly handles both Square Division Quad-Split (SQD) and Two-Sample Interleave (2sI) 4K signal formats, ensuring full interoperability across legacy quad-link infrastructure and single-link 12G environments.

High-Precision HDR Transformation & Color Correction

Featuring optional +HDR and +VPROC software options, the 7814UDX-4K series delivers low-latency, LUT-based HDR/SDR transformations and color space conversions. Production teams can transform between BT.709, BT.2020, and S.Gamut3 gamuts while mapping HDR transfer functions including HLG, SMPTE ST 2084 (PQ), and Sony S-Log3. Integrated broadcast color correction, detail enhancement engines, and RGB color legalization facilitate real-time adjustments to maintain strict signal compliance.

Audio DSP, 12G Physical Transport & System Control

The module transparently processes 16 embedded audio channels, automatically matching audio delay to video latency to preserve lip-sync. Optional discrete AES I/O (-AES8) adds 8 external AES inputs and outputs. Physical connectivity configurations include dual 12G SFP transceivers (-12G) for fiber or coax transport, or high-density HD-BNC rear assemblies (-12G-HDBNC-R). Remote control, monitoring, and parameter configuration are executed via VistaLINK® SNMP or VUE hardware control panels when paired with a 7800FC or 7801FC frame controller.

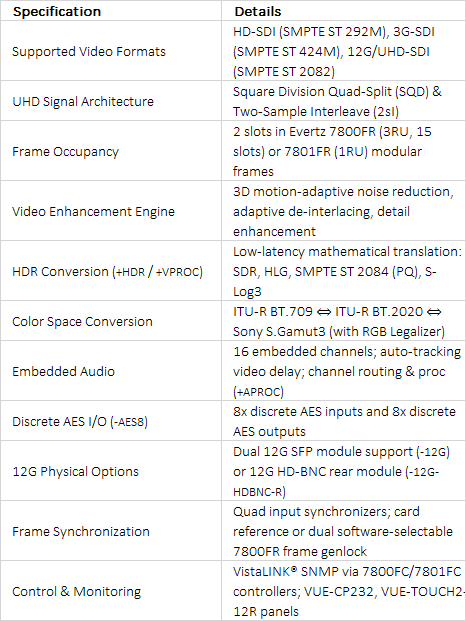

Technical Specifications +

technical specifications
