Evertz 7814UDX-4K / 7814UC-4K / 7814HDC-4K / 7814XC-4K Series UHD/12G/3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

UHD / 12G / 3G / HD Conversion: Supports up, down, and cross conversion across HD, 3G, and 4K/UHD formats.
4K & 12G SDI Support: Converts SQD and 2SI formats; optional -12G adds 12G-SDI single-link support and -12G-HDBNC-R provides 12G HD-BNC connectivity.
HDR & WCG Processing: Supports SDR, HLG, PQ/ST 2084, S-Log3, BT.709, BT.2020, and S-Gamut3 transforms with optional +VPROC/+HDR.
Advanced Video Processing: Includes 3D spatial-temporal noise reduction and motion-adaptive de-interlacing.
Audio Routing & DSP: Supports 16 embedded audio channels with video-delay tracking; optional +APROC and -AES8 provide advanced routing and 8-channel AES I/O.
Quad Frame Synchronization: Synchronizes four SDI inputs using card genlock or external frame reference.
SNMP & VUE Control: Supports VistaLINK®, VUE-CP232, VUE-TOUCH2-12R, and 7800FC/7801FC frame controllers.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

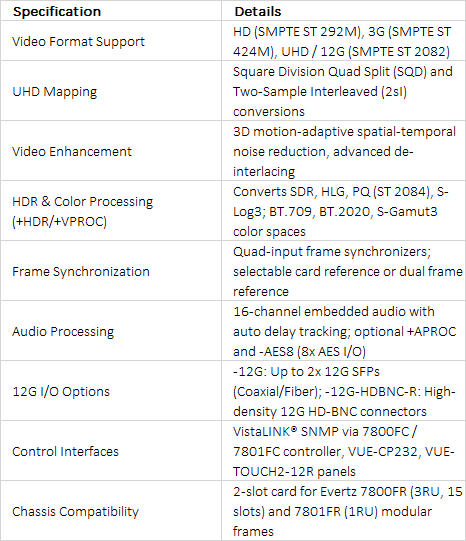

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Advanced 4K/UHD Conversion for Next-Generation Live Production

The Evertz 7814UDX-4K series provides ultra-high-definition up, down, and cross conversion in a compact, two-slot modular form factor. Built to help broadcasters and content distributors bridge traditional HD/3G infrastructure with modern 4K/UHD workflows, the series supports conversions between SMPTE ST 292M, ST 424M, and 12G SMPTE ST 2082. Integrated quad-input frame synchronizers ensure seamless alignment across multi-lane quad-link SDI and single-link 12G-SDI environments, supporting both Square Division Quad Split (SQD) and Two-Sample Interleaved (2sI) mapping.

Precision HDR LUT Processing & Color Space Transformation

Equipped with optional video processing engines (+VPROC) and high-precision HDR licenses (+HDR), the 7814UDX-4K series executes low-latency, mathematical transforms between Standard Dynamic Range (SDR) and High Dynamic Range (HDR) formats, including Hybrid Log-Gamma (HLG), Perceptual Quantizer (PQ / ST 2084), and Sony S-Log3. Built-in Look-Up Table (LUT) processing enables real-time color space conversions across ITU Rec. BT.709, BT.2020, and S-Gamut3, accompanied by full RGB color legalization and detail enhancement engines.

Embedded Audio Pipeline, Modular I/O & Centralized Control

The 7814UDX-4K transparently passes 16 embedded audio channels with automatic delay compensation to maintain exact lip-sync alignment. Systems requiring expanded audio manipulation can add the +APROC option for gain, phase inversion, channel shuffling, and mono mixing, or select -AES8 models for 8 discrete AES input/output pairs. The architecture supports optional 12G-SDI optical/coaxial SFP modules and HD-BNC interface variants (-12G-HDBNC-R). Centralized monitoring, alarming, and parameter adjustments are handled via SNMP using Evertz VistaLINK® and VUE touch panels in 3RU 7800FR or 1RU 7801FR chassis.
