Evertz 7814UDX-4K / 7814UC-4K / 7814HDC-4K / 7814XC-4K Series UHD/12G/3G/HD Up/Down/Cross Converters with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format UHD Conversion: Supports HD, 3G, and 4K UHD signals with SQD and 2sI mapping.
HDR & WCG Processing: Provides real-time SDR, HLG, PQ/ST 2084, and S-Log3 transforms across BT.709, BT.2020, and S-Gamut3.
Advanced Video Processing: Includes 3D spatial-temporal noise reduction, next-gen de-interlacing, detail enhancement, and RGB color legalization.
Quad-Link & 12G Synchronization: Frame-synchronizes quad-link SDI and single-link 12G-SDI inputs to card or frame references.
Flexible 12G I/O: Optional -12G provides dual 12G-SDI SFP slots, while -12G-HDBNC-R provides high-density 12G HD-BNC connectivity.
16-Channel Audio DSP: Passes 16 embedded audio channels with auto-tracking delay, optional +APROC channel shuffling, and -AES8 8-channel AES I/O.
VistaLINK® & VUE Control: Supports centralized monitoring, configuration, and parameter control via 7800FC/7801FC and VUE panels.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

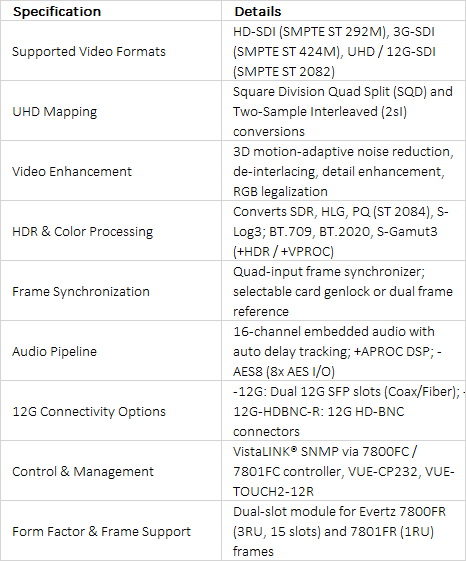

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Ultra-High Definition Multi-Format Conversion

The Evertz 7814UDX-4K series provides broadcast-quality up, down, and cross conversion in a dual-slot modular form factor, bridging legacy HD/3G infrastructures with high-resolution 4K/UHD workflows. Capable of processing SMPTE ST 292M, ST 424M, and ST 2082 signals, the series supports square division quad-split (SQD) and two-sample interleaved (2sI) format conversions. Quad-input synchronizers align multi-lane SDI inputs or single-link 12G-SDI sources with card or frame reference signals.

Precision HDR & Color Space Engine

Equipped with optional video processing (+VPROC) and HDR licenses (+HDR), the card uses high-precision mathematical LUT modeling for low-latency transforms between SDR and major HDR standards, including Hybrid Log-Gamma (HLG), Perceptual Quantizer (PQ / ST 2084), and S-Log3. The processing engine handles wide color gamut conversions across ITU Rec. BT.709, BT.2020, and S-Gamut3 spaces, complete with RGB color legalization and active detail enhancement.

Flexible Audio Management & Scalable Modular I/O

The module transparently passes 16 embedded audio channels with automatic video delay tracking to maintain exact lip sync. For complex audio workflows, the +APROC option provides gain control, phase inversion, channel shuffling, and mono mixing, while -AES8 variants add 8 discrete AES I/O pairs. Modular interface options include -12G (supporting up to two 12G coaxial/fiber SFPs) and -12G-HDBNC-R (high-density HD-BNC connections). Remote telemetry and control are handled through Evertz VistaLINK® SNMP or VUE touch panels in 3RU 7800FR or 1RU 7801FR frames.
