Evertz 7814UDX-4K Series | UHD/12G/3G/HD Up/Down/Cross Converter with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

UHD/3G/HD Conversion: Supports broadcast-quality up, down, and cross conversion between HD-SDI, 3G-SDI, and UHD SMPTE ST 2082 formats.
Advanced Video Processing: Features motion-adaptive 3D noise reduction and advanced de-interlacing for artifact-free, high-quality images.
SDR/HDR & Color Space Conversion: Supports SDR, HLG, PQ (SMPTE ST 2084), and S-Log3 across BT.709, BT.2020, and S-Gamut3 using mathematical modeling and 3D LUTs.
Integrated Frame Synchronization: Provides quad-input frame synchronization for quad-link 3G-SDI or single-link 12G-SDI UHD signals with card and frame reference sources.
Flexible 12G I/O: Supports 12G-SDI HDBNC rear plates (-12G-HDBNC-R) and up to two 12G SFP optical/coaxial transceiver slots (-12G).
16-Channel Audio Processing: Provides automatic audio delay tracking, full audio processing, channel shuffling, and optional 8-channel AES I/O (-AES8).
VistaLINK® Remote Management: Supports centralized SNMP monitoring, configuration, and control via Evertz frame controllers and hardware control panels.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density UHD/3G/HD Video Conversion

The Evertz 7814UDX-4K series (including 7814UC-4K, 7814HDC-4K, and 7814XC-4K variants) is designed to meet the rigorous demands of multi-format broadcast production and distribution environments. Occupying two slots in the Evertz 7800FR or 7801FR frame, this card provides seamless up, down, and cross conversion between SD/HD-SDI (SMPTE ST 292-1), 3G-SDI (SMPTE ST 424M), and 12G UHD formats (SMPTE ST 2082). It natively bridges legacy 3G Quad-Link formats (Square Division and 2sI interleave) to single-link 12G-SDI, allowing facility engineers to manage parallel HD and 4K UHD workflows efficiently.

HDR Processing, Color Correction, and Signal Enhancement

Equipped with advanced 3D motion-adaptive de-interlacing and noise reduction technologies, the 7814UDX-4K series maintains high image resolution while eliminating temporal motion artifacts. Optional video processing licenses (+VPROC and +HDR) enable:

HDR & Color Space Conversion (+HDR): High-precision, low-latency mathematical transforms between SDR and major HDR formats, including HLG, HDR10 (PQ / SMPTE ST 2084), and Sony S-Log3, with automatic color space mapping between BT.709, BT.2020, and S-Gamut3.
Broadcast Video Processing (+VPROC): Full broadcast-quality SDR color correction, RGB-based color legalization, and detail enhancement controls to ensure video signals meet strict transmission tolerances.

Audio Infrastructure, 12G Connectivity, and Remote Control

The 7814UDX-4K series transparently handles up to 16 channels of embedded audio, automatically adjusting audio latency to match video processing delay. When equipped with the +APROC option, operators gain complete audio channel shuffling, gain adjustment, phase inversion, and mono-mixing capabilities. The -AES8 variant expands physical connectivity with 8 discrete AES input and output pairs. For physical I/O flexibility, the -12G option supports up to two 12G SFP transceivers for fiber or coaxial transport, while the -12G-HDBNC-R option provides high-density HDBNC coaxial interface plates. Complete system management, status monitoring, and parameter adjustments are handled remotely via VistaLINK® SNMP software and Evertz hardware control panels.

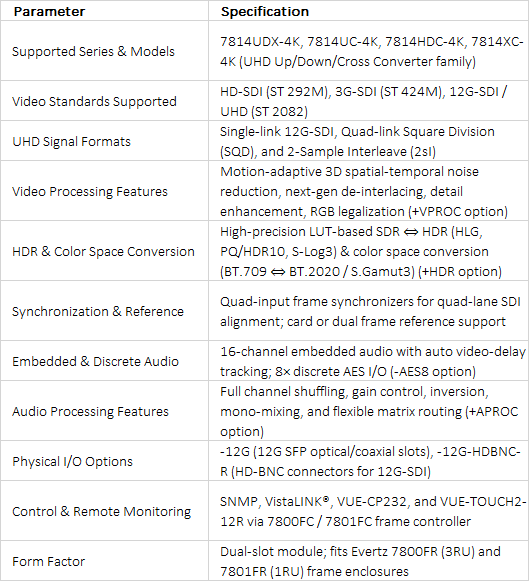

Technical Specifications +

technical specifications
