Evertz 7814UDX-4K Series | UHD/12G/3G/HD Up/Down/Cross Converter with Frame Sync

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

UHD/3G/HD Conversion: Supports up, down, and cross conversion between HD-SDI (SMPTE ST 292M), 3G-SDI (SMPTE ST 424M), and 12G UHD (SMPTE ST 2082).
Quad-Link & Single-Link Bridging: Provides native conversion between Square Division Quad-Link, 2SI (2-Sample Interleave), and single-link 12G-SDI UHD formats.
Advanced Video Processing: Features motion-adaptive 3D noise reduction and next-generation de-interlacing for improved artifact reduction.
HDR & Color Space Conversion (+HDR): Supports SDR, HLG, PQ (SMPTE ST 2084), and S-Log3 across BT.709, BT.2020, and S-Gamut3 using low-latency mathematical modeling.
Quad-Input Frame Synchronization: Provides timing alignment for multi-lane 3G-SDI or single-link 12G-SDI inputs using card or frame references.
16-Channel Audio Processing: Supports embedded audio with auto-tracking delay and optional channel shuffling/mixing (+APROC) and 8 discrete AES I/O pairs (-AES8).

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density UHD/3G/HD Video Conversion

The Evertz 7814UDX-4K series (including 7814UC-4K, 7814HDC-4K, and 7814XC-4K variants) is designed to meet the rigorous demands of multi-format broadcast production and distribution environments. Occupying two slots in an Evertz 7800FR or 7801FR frame, this card provides seamless up, down, and cross conversion between SD/HD-SDI, 3G-SDI, and 12G UHD formats (SMPTE ST 2082). It natively bridges 3G Quad-Link formats (Square Division and 2sI interleave) to single-link 12G-SDI, allowing facility engineers to efficiently manage legacy HD and modern 4K UHD workflows side by side.

HDR Processing, Color Correction, and Signal Enhancement

Equipped with advanced 3D motion-adaptive de-interlacing and spatial-temporal noise reduction technologies, the 7814UDX-4K series preserves high image resolution while eliminating temporal motion artifacts. Optional video processing licenses (+VPROC and +HDR) enable:

HDR & Color Space Conversion (+HDR): High-precision, low-latency mathematical transforms between SDR and major HDR formats, including HLG, HDR10 (PQ / SMPTE ST 2084), and Sony S-Log3, with automatic color space mapping across BT.709, BT.2020, and S-Gamut3.
Broadcast Video Processing (+VPROC): Full broadcast-quality SDR color correction, RGB-based color legalization, and detail enhancement controls to ensure signals meet strict transmission tolerances.

Audio Infrastructure, 12G Connectivity, and Remote Control

The 7814UDX-4K series transparently processes up to 16 channels of embedded audio, automatically tracking audio delay to match video processing latency. When equipped with the +APROC option, operators gain complete audio channel shuffling, gain adjustment, phase inversion, and mono-mixing capabilities. The -AES8 variant expands physical connectivity with 8 discrete AES input and output pairs. For physical I/O flexibility, the -12G option supports up to two 12G SFP transceivers for fiber or coaxial transport, while the -12G-HDBNC-R option provides high-density HDBNC coaxial interface plates. Complete system management, status monitoring, and parameter adjustments are handled remotely via VistaLINK® SNMP software and Evertz hardware control panels.

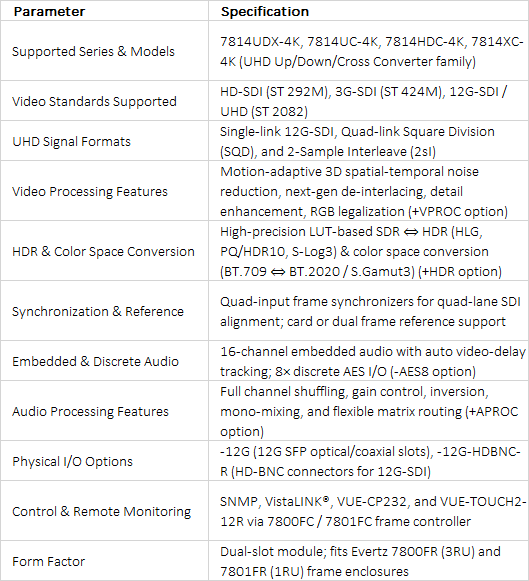

Technical Specifications +

technical specifications
