Evertz 7825CCE-3G 3G/HD/SD-SDI Modular Closed Caption Encoder

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path CC Encoding: Supports two independent 3G/HD/SD-SDI paths for simultaneous CEA-608/708 caption insertion.
Flexible Caption Interfaces: Supports IP Ethernet, RS-232/RS-422, dial-up modem, and GPI caption triggers.
Caption Bridging: Translates between CEA-608 Line 21 VBI and CEA-708 ANC formats with vertical caption shifting.
VANC Metadata Insertion: Supports Dolby Metadata, AFD, Broadcast Flags, and XDS data including V-Chip, CGMS-A, and TSID.
Integrated Caption Decoder: Provides real-time CEA-608/708 decoding with on-screen display for confidence monitoring.
CompactFlash Storage: Optional CF slot supports recording and playback of CEA-608, Procap, and CDP caption files.
Mechanical Bypass Protection: Dual program outputs per path maintain video passthrough during power loss.
VistaLINK SNMP Management: Enables centralized monitoring and automated configuration through VistaLINK Pro.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Master-Grade Closed Captioning for Multi-Format Workflows

The Evertz 7825CCE-3G is a dual-channel 3G/HD/SD-SDI closed caption encoder engineered for broadcast television networks, cable headends, and production facilities. Designed to meet strict FCC regulatory compliance standards, the 7825CCE-3G processes multi-rate serial digital video up to 3Gb/s, offering simultaneous dual-path caption insertion and cross-format translation in a single modular card.

Multi-Interface Connectivity & Smart Caption Bridging

Whether bridging legacy analog caption feeds or routing IP-based steno streams, the 7825CCE-3G handles multiple communication standards:

Diverse Connection Types: Supports direct Ethernet TCP/IP streaming, RS-232/422 serial data, dial-up telephone modems, and opto-isolated GPI inputs.
Port Echo & Daisy-Chaining: Serial port echo functionality allows multiple caption encoders to be daisy-chained together from a single modem or IP link.
CEA-608 / CEA-708 Bridging: Automatically translates incoming Line 21 CEA-608 captions into CEA-708 VANC metadata for HD/3G streams, or transcodes CEA-708 VANC data back down to standard CEA-608 Line 21 for SD downstream paths.

High-Density Modular Chassis Integration

Occupying two card slots, the 7825CCE-3G integrates into the Evertz 7800 series ecosystem, including the 1RU 7801FR (holds up to 2 units), 3RU 7800FR (holds up to 7 units), 350FR portable chassis, or standalone desktop enclosures (requires 7800FC frame controller for full setup).

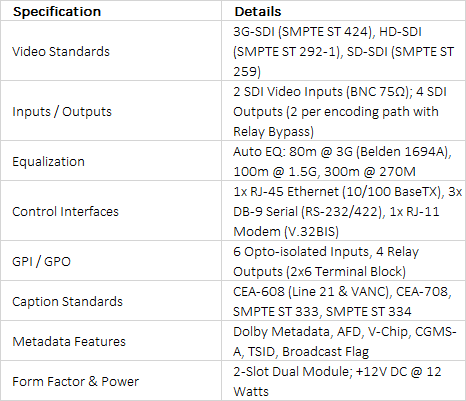

Technical Specifications +

technical specifications
