Evertz 7825CCE-AUD-3G 3G/HD/SD Closed Caption Encoder with Audio-to-IP Streaming

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Audio-over-IP Streaming: Extracts embedded audio into low-bandwidth RTP streams under 65kbps for remote steno-captioning.
Dual-Path CC Encoding: Supports two independent 3G/HD/SD-SDI paths for simultaneous CEA-608/708 caption insertion.
Caption Bridging: Translates CEA-608 Line 21 VBI and CEA-708 VANC formats with vertical caption shifting.
CompactFlash File Management: Optional CF storage supports recording/playback of CEA-608, Procap, SCC, and CDP files with FTP access.
Flexible Caption Ingest: Supports IP Ethernet, RS-232/RS-422, V.32BIS modem, and opto-isolated GPI/GPO triggers.
Mechanical Bypass Protection: Relay-protected program outputs maintain video passthrough during power interruptions.
VistaLINK SNMP Management: Enables remote monitoring, configuration, and control via VistaLINK Pro or VUE panels.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

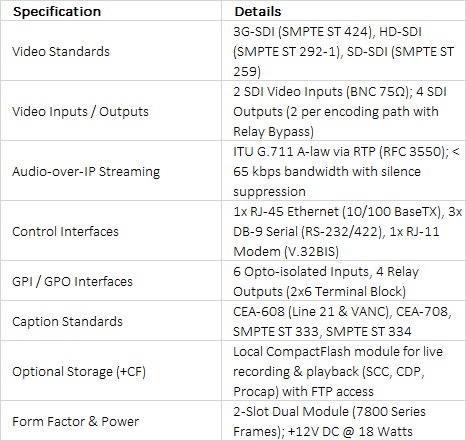

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Modernized Caption Encoding with Remote Audio Delivery

The Evertz 7825CCE-AUD-3G is a master-grade 3G/HD/SD-SDI closed caption encoder equipped with built-in audio-to-IP streaming capability. Designed for broadcast networks, master control rooms, and live event production, this dual-slot module eliminates the cost and complexity of legacy analog phone couplers by delivering a direct, low-latency mono or stereo audio feed to remote captioners over standard IP networks.

Low-Bandwidth Streaming & Advanced VANC Processing

Operating via IETF RFC 3550 RTP protocols with ITU G.711 A-law encoding, the 7825CCE-AUD-3G streams program audio at under 65 kbps, with built-in silence suppression to conserve network bandwidth. Simultaneously, the encoder manages comprehensive VANC metadata, including Active Format Description (AFD) flags, Broadcast Flags, and Extended Data Services (XDS including V-Chip ratings, CGMS-A, and TSID).

Comprehensive Monitoring & File Storage Workflows

Equipped with an integrated caption decoder, the 7825CCE-AUD-3G provides on-screen display (OSD) confidence monitoring directly on preview video outputs. When equipped with the +CF CompactFlash option, station operators can archive active broadcast captions for editing and compliance verification, or automate playback of pre-authored caption files directly to air via FTP network commands.
