Evertz 7847FSEDA-3G-F-2 / 7847FSEDA-HD-F-2 | Dual Path 3G/HD/SD Frame Synchronizers & Distribution Amplifiers

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual Independent Processing Paths: Provides two isolated 3G/HD/SD-SDI frame synchronization and processing channels in a dual-slot card.
High-Density Output Distribution: Provides six fully synchronized/processed coaxial outputs, two reclocked non-synchronized outputs, and up to four SFP outputs per processing path.
Flexible SFP Connectivity: Supports optical or coaxial SFPs for software-selectable input sourcing, failover switching, and fiber transport.
Advanced Video Processing: Includes video proc amp, color correction, RGB color legalization, and independent video/audio delay adjustment per channel.
16-Channel Audio Engine: Supports embedded audio routing/shuffling, gain, phase inversion, mono mixing, and 5.1-to-stereo downmixing (LoRo/LtRt).
Flexible Reference Management: Supports frame-wide or card-edge local reference with software-configurable automatic failover between reference inputs.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Path Processing & Synchronization

The Evertz 7847FSEDA series integrates frame synchronization, extensive audio processing, distribution amplification, and optical/electrical conversion into a single dual-slot 7800-series module. By accommodating two fully independent processing channels on a single card, it enables up to 14 processing paths in a 3RU 7800FR chassis—drastically reducing rack footprint, cabling complexity, and power requirements for broadcast facilities, OB trucks, and live production environments.

Modular Fiber Transport & Failover Routing

Featuring standard high-density DIN 1.0/2.3 coaxial connectors (HDBNC optional) alongside pluggable SFP transceiver cages, the 7847FSEDA offers total I/O agility. Input sources can be dynamically selected via software between coaxial and SFP inputs, with configurable automatic failover on loss of video. On the output side, signals are simultaneously routed to six coaxial outputs and four SFP optical/coaxial outputs per path.

Professional Audio Management & Modular Upgrades

The onboard audio processor handles up to 16 channels of embedded audio per path with granular routing, gain, and delay management. Optional software keys expand capabilities to include IntelliGain® II automated loudness control (+IG2 option), stereo-to-5.1 up-mixing (+UMX2 option), and SCTE104 digital cue message insertion over IP (+SCTE104-2 option).

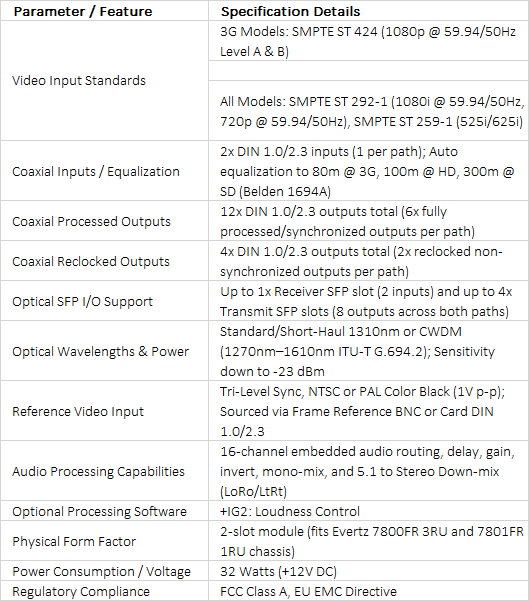

Technical Specifications +

technical specifications
