Evertz 7847FSEDA-3G-F-2 / 7847FSEDA-HD-F-2 | Dual Path 3G/HD/SD Frame Synchronizers & Distribution Amplifiers

Name: Evertz 7847FSEDA-3G-F-2 / 7847FSEDA-HD-F-2 | Dual Path 3G/HD/SD Frame Synchronizers & Distribution Amplifiers
Brand: Evertz

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual Processing Paths: Supports two fully isolated 3G/HD/SD-SDI frame synchronization and processing channels in a dual-slot module, with up to 14 processing paths in a 3RU frame.
High-Density Signal Distribution: Provides six synchronized/processed coaxial outputs, two reclocked non-synchronized outputs, and up to four SFP outputs per processing path.
Flexible SFP Connectivity: Supports optical or coaxial SFPs with software-selectable input sourcing and automatic video-loss failover.
Advanced Video Processing: Includes frame synchronization, video proc amp, color correction, RGB color legalization, and independent video/audio delay adjustment.
16-Channel Audio Processing: Supports full audio routing/shuffling, gain, phase inversion, mono mixing, and 5.1-to-stereo downmixing (LoRo/LtRt).
Flexible Reference Management: Supports frame or card-edge local reference with prioritizable automatic failover protection.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Path Architecture

The Evertz 7847FSEDA series combines frame synchronization, advanced audio processing, distribution amplification, and optical/electrical conversion into a compact dual-slot card. Designed for high-density broadcast facilities, OB vans, and live production racks, each module accommodates two completely independent video paths—enabling up to 14 channels of sync and DA processing in a single 3RU 7800FR chassis.

Flexible I/O Routing & Fiber Transport

Outfitted with mini DIN 1.0/2.3 coaxial connectors (HDBNC optional) and standard SFP transceiver cages, the 7847FSEDA provides unmatched routing versatility. Inputs can be manually assigned or set to auto-failover between coaxial and SFP optical inputs upon video loss. On the output side, processed signals are routed concurrently across coaxial distributions and up to 4 optical SFP output ports per path.

Comprehensive Audio Management & Software Upgrades

Each processing path manages up to 16 embedded audio channels with granular shuffling, delay, gain, and down-mixing capability. Optional software licenses further unlock IntelliGain® II automated audio loudness control (+IG2 option), stereo-to-5.1 up-mixing (+UMX2 option), and SCTE104 digital cue message insertion over IP (+SCTE104-2 option).

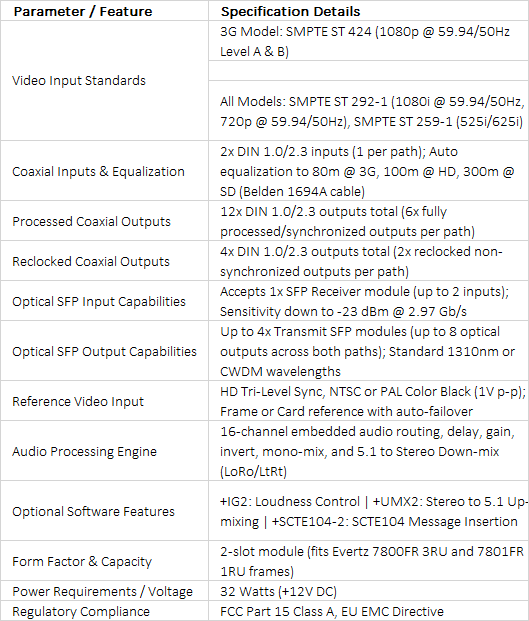

Technical Specifications +
