Evertz 7847FSEDA-3G-F-2 / 7847FSEDA-HD-F-2 Dual Path Frame Synchronizers & Distribution Amplifiers

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Design: Provides two independent frame sync and distribution amplifier paths in one 2-slot module, supporting up to 14 paths in a 3RU frame.
Multi-Format SDI Support: Supports 3G-SDI Level A/B, HD-SDI, and SD-SDI formats.
High-Density Coax Outputs: Provides 6 synchronized and 2 reclocked DIN 1.0/2.3 outputs per path, with 16 coaxial outputs per module.
SFP Expansion & Failover: Supports up to 4 SFP outputs per path for optical or coaxial expansion with software-selectable input failover.
Video Processing & Legalization: Includes proc amp, color correction, RGB color legalization, and independent video/audio delay compensation.
16-Channel Audio DSP: Supports routing, gain, channel shuffling, inversion, mono mixing, and 5.1-to-stereo LoRo/LtRt downmixing.
SCTE 104 Insertion: Optional +SCTE104-2 provides IP-based SCTE 104 insertion via API for ad insertion and trigger passthrough.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Multi-Function Dual-Path Architecture

The Evertz 7847FSEDA series consolidates frame synchronization, audio processing, distribution amplification, and optical-to-electrical signal conversion into a single 2-slot card for 7800 series frames. By providing two completely independent video processing channels on one board, the 7847FSEDA delivers up to 14 channels of processing in a 3RU chassis, drastically reducing inter-wiring, rack space, power consumption, and equipment costs in broadcast facilities and mobile production units.

Comprehensive Distribution & Pluggable SFP Optical I/O

Designed for high-density signal distribution, each channel features 6 synchronized, fully processed coaxial outputs and 2 re-clocked non-synchronized loop outputs via compact DIN 1.0/2.3 or optional HDBNC connectors. Additionally, the card accepts Evertz SFP optical or coaxial transceiver modules, providing up to 4 SFP outputs per path. Input selection between coaxial and SFP sources can be manually forced or set to automatic failover mode based on loss of signal.

Audio Processing, Metadata & Frame Reference Control

Standard audio DSP capabilities support 16 channels of embedded audio per path with full shuffling, phase inversion, gain adjustment, and 5.1-to-stereo downmixing (Lt/Rt or Lo/Ro). Optional modules enable IntelliGain® loudness management (+IG2) and 5.1 upmixing (+UMX2). Frame genlock reference can be sourced from either frame reference connection or the card's local reference port with prioritizable auto-failover, ensuring glitch-free operation and continuous sync alignment.

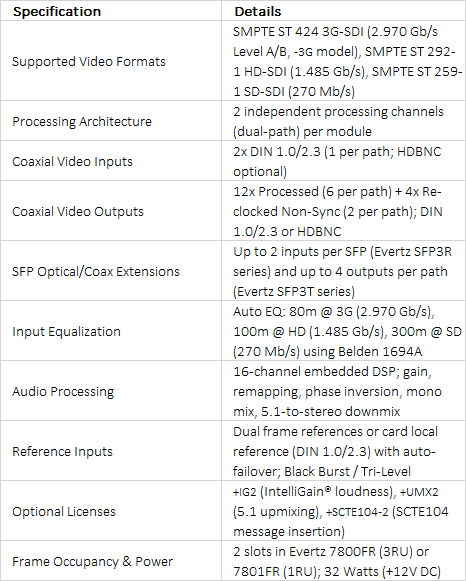

Technical Specifications +

technical specifications
