Evertz 7881MUX-LITE-IP Modular IP Multiplexer Card

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

IP Multiplexing: Demuxes and remuxes up to 16 SPTS/MPTS inputs to 16 outputs.
Transport Stream Grooming: Supports PID filtering, remapping, and program manipulation.
Stream Protection: Provides per-program bitrate limiting to prevent output corruption.
DVB & ATSC Metadata: Generates local PSI/SI and PSIP tables automatically.
Stream Health Monitoring: Tracks TS loss, CC errors, and overall bitrate via TSM-Lite.
Network Connectivity: Provides 3x GbE RJ-45, 1x 1GbE SFP, and IEEE 802.1Q VLAN support.
Metadata & Failover: Supports in-band metadata insertion and automatic input failover via VistaLINK CSM NMS.
Modular Design: Dual-slot card compatible with Evertz 7800 series frame enclosures.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Transport Stream Grooming and Remultiplexing

The Evertz 7881MUX-LITE-IP is a compact, high-performance IP transport stream multiplexer card designed for DVB-S/T/C headends, cable networks, and IPTV distribution systems. Processing up to 16 Single Program Transport Streams (SPTS) or Multiple Program Transport Streams (MPTS) concurrently, the card enables broadcast engineers to groom, filter, and aggregate pre-encoded video content into optimized output transport streams ready for linear transmission.

Stream Integrity, Bitrate Control, and Metadata Generation

Engineered for error-free stream aggregation, the 7881MUX-LITE-IP includes built-in protection and metadata generation tools:

Per-Program Bitrate Limiting: Restricts individual stream bitrates to prevent input bursts from over-subscribing shared output multiplexes.
DVB/ATSC Table Generation: Automatically constructs and updates critical system information tables (PSI/SI and PSIP) to ensure downstream receiver compatibility.
Stream Monitoring & In-Band Data: Features integrated TSM-Lite monitoring for real-time tracking of continuity counter (CC) errors and signal loss, alongside support for inserting private in-band metadata PIDs for downstream data tagging or firmware management.

Network Flexibility and Automatic Failover

With four total Gigabit Ethernet media interfaces (3x RJ-45 GbE and 1x 1GbE SFP), the 7881MUX-LITE-IP provides versatile IP encapsulation (UDP/IP/Ethernet) across both unicast and multicast (IGMP v2/v3) environments. The card supports full VLAN tagging (passing or adding) across all data ports. When orchestrated by Evertz VistaLINK CSM NMS, the system executes seamless automatic failover to redundant incoming transport feeds in the event of primary link degradation.

Modular Chassis Integration and Management

Occupying two slots in Evertz 7800 series 3RU frame assemblies, the 7881MUX-LITE-IP integrates into existing facility management frameworks via a dedicated Gigabit Ethernet control port. Operators can monitor, configure, and automate multiplexing topologies using Evertz VistaLINK CSM network management software via SNMP.

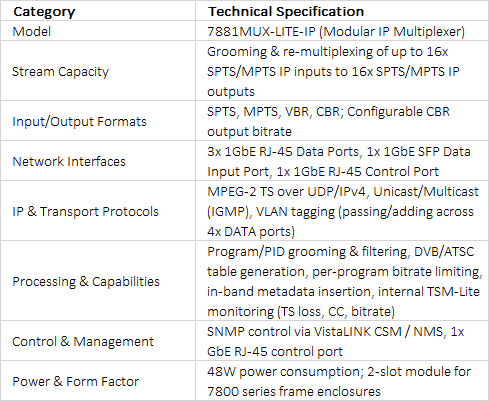

Technical Specifications +

technical specifications
