Key Features

1RU DWDM Amplifier: High-performance optical amplification for single-mode fiber transport.
Three Configurations: Boost (9000EDFA-B), Inline (9000EDFA-L), and Pre-Amplifier (9000EDFA-P).
C-Band Operation: Supports 1530–1560nm wavelengths with a 1550nm center wavelength.
Low Noise Figure: Down to 4.5dB typical on the 9000EDFA-P.
High Optical Performance: Up to +17dBm output power and -35dBm input sensitivity.
High Isolation: Provides >30dB input/output isolation and >50dB return loss.
Flexible Connectors: Supports SC/PC, FC/PC, FC/APC, and SC/APC terminations.

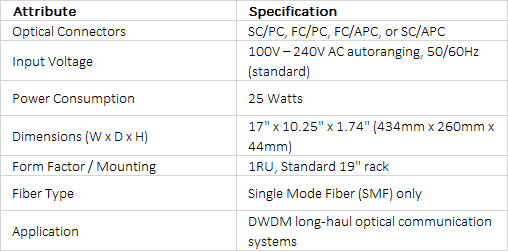

Rackmount Chassis: 1RU 19" design with 100–240V AC autoranging power supply and 25W consumption.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Long-Haul C-Band Optical Amplification

The Evertz 9000EDFA series consists of high-reliability Erbium Doped Fiber Amplifiers designed to extend multi-channel DWDM optical signals across long-distance broadcast and telecom fiber networks. By combining low noise figures with low power consumption, the 9000EDFA series integrates seamlessly with Evertz optical transmitters, receivers, and DWDM multiplexers to overcome fiber attenuation over long-haul runs.

Targeted Model Configurations

9000EDFA-B Boost Amplifier: Deployed at the transmit origin of an optical link to maximize optical launch power (up to +17dBm output) into the fiber trunk or optical distribution network.
9000EDFA-L Inline Amplifier: Positioned mid-span along an optical transmission route to boost signal levels by combining high input sensitivity (-25dBm) with high output power (+15dBm).
9000EDFA-P Pre-Amplifier: Installed directly prior to the optical receiving equipment at the terminus of a long-haul link, amplifying faint optical signals down to -35dBm with a low 4.5dB typical noise figure and 30dB small signal gain.
