Evertz CP-2048E 2RU 48-Button Dynamic LCD Router Control Panel

Evertz Video Routers

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

2RU Router Control Panel: Features 48 assignable dynamic LCD buttons in three rows of 16.
LCD Displays: 32×24 dot matrix supports text strings, custom characters, and dynamic graphics.
Multi-Color Backlight: Red, Green, and Yellow illumination with two-level intensity control.
Dynamic Navigation: Buttons dynamically change functions and legends based on active configurations.
Security Controls: LOCK and ENABLE modes prevent accidental or unauthorized crosspoint selection.
Camera Joystick Override: Supports up to 8 inputs via GPI D9 with momentary or latching action.
Dual Connectivity: Supports Qlink coaxial interface and Ethernet RJ45 for MAGNUM routing platforms.
Flexible Power: 100–240V AC auto-ranging supply or 12V DC input.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density 48-Button Dynamic LCD Layout

The Evertz CP-2048E is a flexible 2RU router control panel engineered for demanding broadcast environments such as OB trucks, mobile production units, and master control suites. Featuring 48 dynamic LCD buttons arranged across three rows of 16, the CP-2048E provides exceptional control density, enabling operators to manage complex routing hierarchies, level breakaways, and system macros within a clear physical surface.

Contextual Menu Navigation & Visual Status

Designed to streamline live production operations, each button features a 32x24 dot-matrix display rendering custom text labels, graphics, or custom character sets:

Dynamic Menu Tree: Pressing a menu button re-maps surrounding button legends and functions on the fly for fast sub-menu navigation.
Multi-Color Feedback: Programmable red, green, and yellow backlighting with dual-level intensity offers clear visual confirmation of source/destination status and active routes.
Operational Control: Supports page mode navigation (NEXT/LAST), breakaway switching, and lock/enable button protection.

Interfacing & Power Flexibility

The CP-2048E bridges legacy and modern broadcast systems, offering direct Qlink 75Ω coaxial connectivity for legacy Evertz routers as well as standard Ethernet IP control for MAGNUM routing systems. A dedicated D9 interface handles camera joystick override triggering, while dual AC/DC power inputs ensure reliable operation across facility installations.

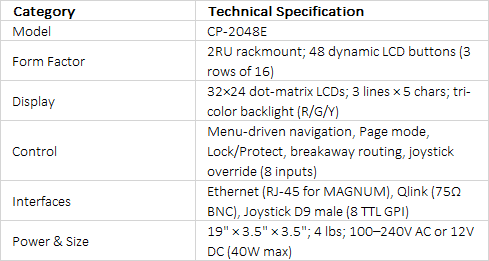

Technical Specifications +

technical specifications
