Evertz CP-2116E / CP-2116E-H Advanced System Control Panel

Evertz Video Routers

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Advanced Control Panel: High-resolution color touchscreen with 16 dynamic LCD buttons and rotary controls.
Context-Sensitive Interface: Dynamically updates controls, menus, and graphics based on active selections.
MAGNUM Integration: Supports automated tieline management, pathfinding, and advanced breakaway routing.
SNMP Device Control: Groups and associates terminal gear parameters with router sources and destinations.
Multiviewer Control: Provides MVP and VIP layout previews, source routing, and audio monitoring selection.
Flexible Mounting: Available in 19" full-width, 9.5" half-width, or 3RU Tektronix WFM side-by-side configurations.
Slim Fanless Design: 1.2" chassis depth with quiet operation for desktop or rack installation.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

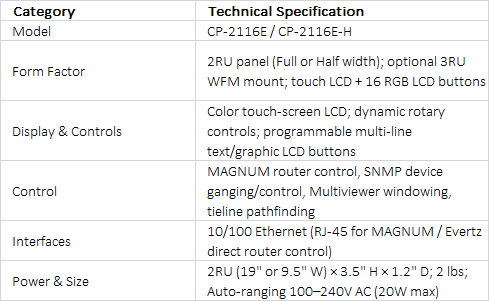

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Interactive Touchscreen & Dynamic LCD Interface

The Evertz CP-2116E / CP-2116E-H is an advanced system control panel engineered to deliver multi-system orchestration across broadcast environments. Combining a high-resolution color touchscreen, rotary encoders, and 16 dynamic LCD buttons, the panel intelligently updates its visual interface based on operator context—enabling rapid navigation across complex signal paths, multiviewers, and terminal gear.

Deep Ecosystem & Multiviewer Orchestration

Designed to operate within the Evertz MAGNUM control platform, the CP-2116E streamlines facility workflows:

Multiviewer Control: Manages Evertz MVP and VIP multiviewer processors, rendering graphical layout previews on screen before loading and giving operators direct control over window routing and audio monitoring.
SNMP Terminal Gear Management: Automatically pairs SNMP-enabled hardware parameters with router sources and destinations, loading relevant device controls or recalling presets during crosspoint changes.
Advanced Routing: Supports automated tielines, pathfinding logic, category searching, and multi-level breakaway switching.

Flexible Chassis & Mounting Configurations

Featuring a shallow 1.2-inch profile and silent operation, the CP-2116E-H accommodates flexible installation setups:

Full-Width Panel: Standard 19" 2RU rackmount configuration.
Half-Width Panel: Compact 9.5" 2RU footprint for desktop enclosures or dual-panel racks.
WFM Integration: 3RU CPH-TEK chassis option allowing side-by-side mounting with a standard Tektronix waveform monitor.
