Evertz CP-2272E 2RU Advanced System Control Panel with Dual LCD Displays

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

2RU System Control Panel: Features 72 programmable full-color dynamic LCD buttons.
Dual LCD Displays: High-resolution color displays with rotary controls for dynamic operational feedback.
MAGNUM Integration: Supports automated tieline management, signal pathfinding, and advanced breakaway routing.
Dynamic Navigation: Re-maps button legends, text strings, and graphic icons based on active modes.
Ethernet Connectivity: 10/100 Base-T RJ45 interface for central MAGNUM routing networks.
Joystick GPI Control: D9 male contact-closure interface supporting up to 8 camera override inputs.
Redundant Power: Dual 100–240V AC power supplies for mission-critical broadcast operation.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dynamic Control in 2RU

The Evertz CP-2272E is an advanced 2RU system control panel engineered for broadcast environments requiring extensive routing capability and immediate signal visibility. Featuring 72 full-color dynamic LCD buttons alongside dual high-resolution LCD screens, the CP-2272E provides high control density for managing complex source, destination, and breakaway configurations across production facilities and mobile OB trucks.

Dynamic Interaction & Contextual Navigation

Designed to simplify multi-level broadcast orchestration, the panel's LCD displays interact continuously with its rotary controls and button matrix:

Context-Aware Screens: Selecting menus or operational modes automatically updates the dual LCD screens and button labels to display relevant signal status, parameters, or sub-menus.
Custom Graphical Labels: Each of the 72 dynamic buttons can render multi-character text strings or dynamic graphics, giving operators instant visual confirmation during live events.
MAGNUM Pathfinding Integration: Directly interfaces with the Evertz MAGNUM control platform to support automated tielines, category searches, and level breakaways.

Built for Mission-Critical Broadcast

The CP-2272E is built for continuous operation in Production Control Rooms (PCR), Technical Director consoles, and mobile units. Its 4-inch chassis depth allows clean console or rack installation, while dual redundant auto-ranging AC power supplies ensure continuous operation in the event of a power feed failure.

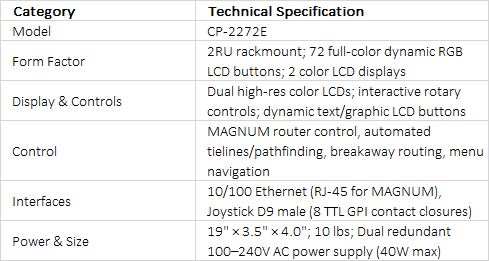

Technical Specifications +

technical specifications
