Key Features

High-Power Capacity: Delivers up to 750W per slot for compute, routing, and bulk processing modules.
Flexible Form Factors: DF9-FR supports up to 9 vertical slots in 10RU, while DF1-FR provides 1 horizontal slot in 1RU.
Multi-Application Support: Houses video/audio routing engines, IP media gateways, IP routers, and bulk signal processors.
N+1 Power Redundancy: Features hot-swappable redundant PSUs and field-replaceable fan modules for reliable operation.
Dual Timing References: Provides two BNC reference inputs with independent programmable timing planes.
Optimized Thermal Design: Uses front-to-top exhaust with top fans in 10RU models and front-to-side exhaust in 1RU models.
MAGNUM-NMS & SNMP: Native SNMP support enables centralized chassis telemetry and management via MAGNUM-NMS.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Capability Dragon Fire Frame Architecture

The Evertz DF9-FR and DF1-FR Dragon Fire (DF) series of multicard frames represent a high-performance modular platform engineered for high-density routing, IP media gateways, and complex broadcast signal processing. Drawing on the proven heritage of Evertz EMX series multiframes, the Dragon Fire platform accommodates next-generation processing cards with significantly larger form factors and heavy power demands. Cards install vertically in the 10RU DF9-FR or horizontally in the 1RU DF1-FR, allowing technical facilities to chain custom video, audio, and IP processing cards together seamlessly.

Extreme Power Handling and Engineered Thermal Control

Built specifically to power high-throughput broadcast infrastructure, the Dragon Fire chassis delivers up to 750 watts of processing power per slot (up to 7500W total frame consumption for a fully loaded 10RU unit). To manage heavy heat dissipation, the 10RU DF9-FR incorporates top-mounted fans operating in a front-to-top exhaust pattern, while the 1RU DF1-FR utilizes front- and rear-mounted fans with a front-to-side airflow path. This thermal design ensures continuous 24/7 operation without thermal throttling.

System Redundancy and Centralized Network Management

To prevent broadcast outages, the DF series features hot-swappable N+1 dual redundant power supplies and fan modules that can be serviced while active signal processing continues uninterrupted. Integrated dual BNC reference inputs support two separate programmable timing planes for multi-format video genlock. Full system telemetry, status alarming, and card parameter controls are communicated directly via SNMP to Evertz MAGNUM-NMS software across local or wide area networks.

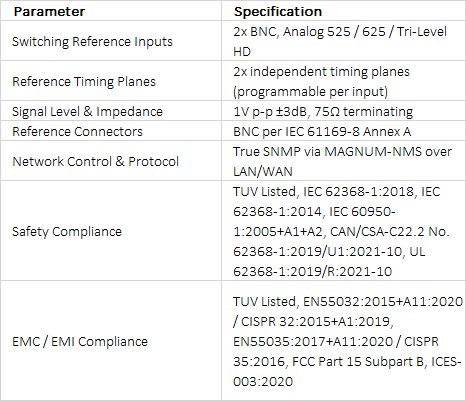

Technical Specifications +

technical specifications
