Evertz ev670-X30-HW-V2 Virtualized FPGA Media Processing Compute Blade

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Software-Defined FPGA Blade: Supports licensable APPs for gateway, multiviewer, and video/audio/ANC processing.
Hybrid SDI & IP I/O: Provides 32x32 SDI I/O and 6x 100GbE QSFP interfaces.
ST 2110 IP Gateway: Supports up to 16x16 UHD 12G-SDI or 32x32 3G-SDI encapsulation/de-encapsulation.
FPGA Multiviewer: Monitors up to 64x 3G or 16x UHD ST 2110/JPEG XS feeds or native 12G-SDI inputs.
Video & Color Processing: Optional frame sync supports up to 16x 3G or 8x 12G, with BBC LUT SDR/HDR conversion.
NMOS & SDVN Integration: Supports AMWA NMOS IS-04/IS-05, MAGNUM, and VistaLINK PRO orchestration.
Flexible Frame Compatibility: Dual-slot blade for ev1-FR, ev3-FR, and ev6-FR enclosures.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

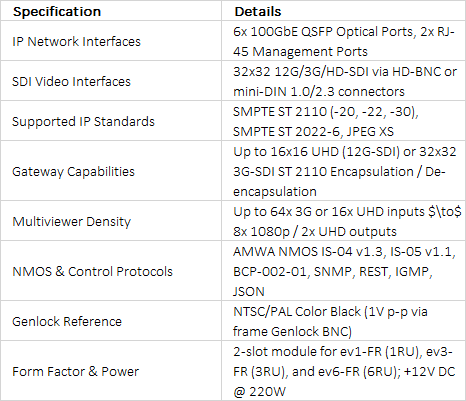

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Virtualized Broadcast Infrastructure at Scale

The Evertz ev670-X30-HW-V2 is a next-generation, FPGA-accelerated compute blade engineered to transform broadcast master control rooms, OB trucks, and production facilities. Moving away from rigid, single-purpose hardware, the ev670-X30-HW-V2 provides a flexible pool of generic compute resources managed via software licenses. Facilities can dynamically deploy and reconfigure processing applications—such as IP gateways, high-density multiviewers, or HDR/SDR converters—as operational needs evolve.

High-Bandwidth IP & Baseband Density

Equipped with six 100GbE QSFP ports and a 32x32 12G/3G-SDI baseband interface, the ev670-X30-HW-V2 delivers ultra-low latency and ultra-high density in a compact two-slot form factor. The card serves as a bridge between baseband SDI environments and uncompressed IP infrastructures, natively supporting SMPTE ST 2110 (-20, -22, -30), ST 2022-6, and JPEG XS compressed workflows.

Licensable Application (APP) Ecosystem

The blade's functionality is defined by selectable software applications, including:

evVIP-APP-100G-ST2110 / ST2022-6: Multiviewer apps displaying up to 64x 3G or 16x UHD IP inputs over 8x 1080p or 2x UHD outputs.
evVIP-APP-SDI / JPEG-XS-SDI: High-density baseband and compressed SDI multi-image display processors.
evIPG-12G / evIPG-3G: Media gateway apps providing up to 16x16 12G-SDI or 32x32 3G-SDI ST 2110 translation.
670IPG-X30-APP-8-FS-HDR: Advanced gateway providing 8x 12G-SDI frame synchronization and BBC LUT SDR-to-HDR color space mapping.
