Evertz MAGNUM-HW 1RU Enterprise Class Server for MAGNUM Software Modules

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Enterprise Server: High-density 1RU hardware for Evertz MAGNUM control, orchestration, monitoring, and analytics.
Pre-Installed Software: Includes Linux OS and MAGNUM framework for rapid deployment; license activation required.
Redundant Hardware: Dual 1000W 80 PLUS Platinum PSUs with RAID 1 SSD configuration.
Network Connectivity: Provides 4x 1GbE RJ-45, 4x 10GbE SFP+, and 1x dedicated IPMI management port.
Short-Depth Chassis: 15.7" (400 mm) design for space-constrained racks, equipment rooms, and OB vans.
Advanced Cooling: Features 6 internal chassis fans plus active PSU cooling.
System Diagnostics: Front-panel status, power, ID, and per-drive SSD activity indicators.
Local Connectivity: Includes 2x front USB ports and VGA output via Mini-DisplayPort adapter.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Dedicated Enterprise Hardware for Broadcast Orchestration

The Evertz MAGNUM-HW is an enterprise-grade 1RU server engineered specifically to provide a highly secure, reliable, and high-performance hardware environment for the Evertz MAGNUM software ecosystem. By hosting MAGNUM-OS control, orchestration, NMS monitoring, and data analytics engines, the MAGNUM-HW server serves as the central brain for facility-wide routing and signal management across baseband SDI, ST 2110 IP, and hybrid broadcast networks.

High Reliability and Redundant System Architecture

Built to meet the non-stop demands of 24/7/365 mission-critical broadcast environments, master control hubs, and live transmission facilities, the MAGNUM-HW integrates continuous uptime hardware protections:

Storage Protection: Configured with RAID 1 mirroring to safeguard operating system data, dynamic database logs, and system configuration profiles against drive failure.
Power Redundancy: Powered by dual hot-swappable 1000W 80 PLUS Platinum high-efficiency power supplies connected to independent AC circuits.
Out-of-Band Management: Includes a dedicated RJ-45 IPMI port for remote hardware telemetry, system diagnostics, and out-of-band administrative control.

High-Bandwidth LAN & Compact Form Factor

Featuring four 1GbE RJ-45 copper ports alongside four 10GbE SFP+ optical ports, the server handles high-throughput control traffic, network device discovery, and real-time telemetry streaming across large-scale media infrastructures. Its short chassis depth of 15.7 inches (400 mm) makes the MAGNUM-HW exceptionally easy to deploy in high-density broadcast racks, mobile production trucks (OB vans), and remote event flight cases.

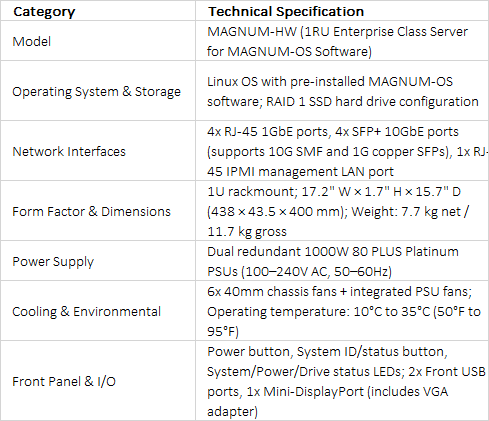

Technical Specifications +

technical specifications
