Evertz MAGNUM-HW-C 1RU Compact Server for MAGNUM Software Modules

Evertz Video Routers

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Enterprise MAGNUM Server: 1RU short-depth server for Evertz MAGNUM control, orchestration, monitoring, and analytics.
Pre-Installed Software: Includes Linux OS and MAGNUM engine for streamlined deployment; software key required.
Redundant Power: Dual 1000W power supplies for continuous, high-availability operation.
High-Bandwidth Networking: Provides 6x 1GbE RJ-45, 4x 10GbE SFP+, and 1x IPMI management port.
Compact Chassis: 15.7" (400 mm) depth for OB trucks, flight cases, and high-density broadcast rooms.
Advanced Cooling: Features 6 system fans plus 2 dedicated active PSU fans.
Front-Panel Monitoring: Provides power, health, UID, PSU, and network speed/activity indicators.
Peripheral I/O: Includes 2x front USB ports and 1x Mini DisplayPort output.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Compact Enterprise Server for Broadcast Orchestration

The Evertz MAGNUM-HW-C is a compact 1RU server engineered specifically to host the Evertz MAGNUM software set. Serving as the operational core for broadcast facilities, production centers, and mobile units, the MAGNUM-HW-C powers MAGNUM-OS control, orchestration, NMS monitoring, and analytics engines to manage signal routing across baseband SDI, SMPTE ST 2110 IP, and hybrid broadcast environments.

Uptime-Driven Redundant Hardware Design

Built for 24/7/365 mission-critical broadcast infrastructure, the MAGNUM-HW-C incorporates full hardware redundancy and out-of-band management:

Power Protection: Dual 1000W redundant power supplies provide failover capability across independent AC power feeds.
Out-of-Band Control: Features a dedicated RJ-45 IPMI port for remote hardware telemetry, system diagnostics, and server administration without impacting media control networks.
Front Panel Telemetry: Includes comprehensive LED indicators for immediate visual monitoring of power status, system health, UID, and Ethernet speed/activity.

High Network Density in a Short-Depth Form Factor

Equipped with 6x RJ-45 1GbE ports and 4x 10GbE SFP+ optical interfaces (supporting optical and copper SFP modules), the MAGNUM-HW-C delivers high-capacity throughput for control, routing automation, and multi-device telemetry streaming. Its short 15.7-inch (400 mm) chassis depth makes it an ideal fit for mobile production trucks (OB vans), remote production kits, and space-limited central control rooms.

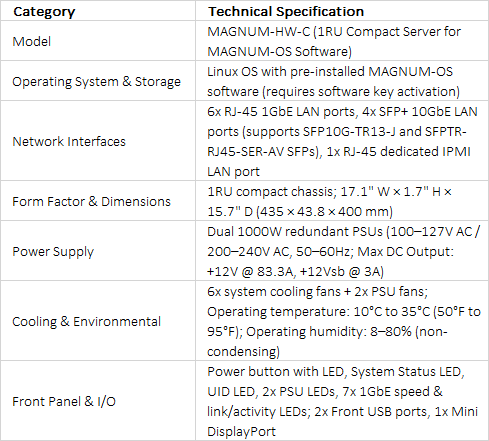

Technical Specifications +

technical specifications
