Evertz MIO-BLADE-Z21 Virtualized Compute & Media Processing Module

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

FPGA Compute Blade: Generic FPGA-based platform for dynamically licensed microservice applications.
SDI Connectivity: Dual-slot MIO form factor with 8× HDBNC supporting 12G/3G/HD/SD-SDI and DVB-ASI.
Chassis Compatibility: Works across SCORPION chassis ecosystems, with HP/PS3/PS6 supplies required for SCORPION-X18.
IP Gateway: Supports SMPTE ST 2110 and ST 2022-2/6/7 with hitless merge and quad/single-link conversion.
Compression: Licensed JPEG XS (TR-07) and JPEG2000 encoding/decoding up to 12G UHD.
Video Processing: Supports UDX conversion, 3D LUT HDR, A/V delay, and 2SI/SQD conversion.
NMOS & Control: Supports IS-04 v1.3, IS-05 v1.1, BCP-002-01 v1.0, web GUI, REST API, and VistaLINK PRO.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Virtualized Media Compute Blade

The Evertz MIO-BLADE-Z21 brings software-defined agility to modular media transport. Powered by a high-performance generic FPGA, this dual-slot MIO module runs user-selectable microservice applications (APPs). This architecture allows broadcast operations to repurpose hardware on the fly—shifting from IP encapsulation to video conversion or low-latency compression via perpetual or temporal software keys.

Scalable Microservice Applications (APPs)

The MIO-BLADE-Z21 runs a broad portfolio of specialized software services:

IP Gateways: MIO-APP-IPG-2110 and MIO-APP-IPG-2022 provide up to 8 configurable gateway paths with ST 2022-7 hitless merge and 2SI quad-to-single link conversion (no licenses required).
Low-Latency Compression: MIO-APP-XS and MIO-APP-J2K series deliver multi-channel JPEG XS and JPEG2000 encoding/decoding for remote production trunks.
Format & Signal Processing: MIO-APP-UDX and MIO-APP-2QUAD handle 3G/4K up/down/cross conversion, 3D LUT HDR color mapping, and A/V signal delay up to 10 seconds.

High-Density SDI Connectivity

Featuring 8x HD-BNC connectors with automatic cable equalization and reclocking up to 12G-SDI, the module delivers robust physical signal interconnectivity inside SCORPION frames while maintaining full REST API and NMOS control.

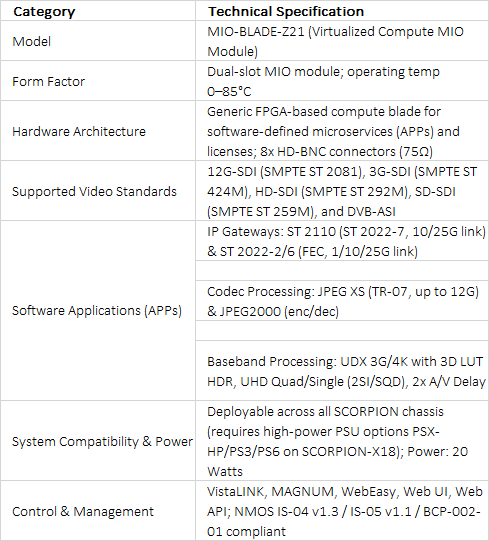

Technical Specifications +

technical specifications
