Evertz MIO-BLADE-Z21 | Virtualized MIO Media Processing Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

FPGA-Based Virtualized Compute: Runs reconfigurable microservice applications for flexible broadcast workflows.
High-Density SDI Connectivity: Provides 8 HDBNC connectors supporting 12G/3G/HD/SD-SDI and DVB-ASI.
License-Based APP Deployment: Enables scalable functions including JPEG XS/JPEG2000, UDX conversion, and IP encapsulation through temporal or perpetual licensing.
Unlicensed IP Gateway APPs: Supports SMPTE ST 2110 with ST 2022-7 hitless merge and 10/25GbE, plus ST 2022-2/6.
Advanced Video Processing: Supports TR-07 JPEG XS up to 12G, JPEG2000, dual-channel 3G/4K UDX, 3D LUT HDR processing, and A/V delay paths.
NMOS & Open Control: Supports IS-04 v1.3, IS-05 v1.1, BCP-002-01 v1.0, embedded Web GUI, and REST API.
Universal Frame Compatibility: Dual-slot MIO module for Evertz SCORPION and MIO-capable chassis platforms.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

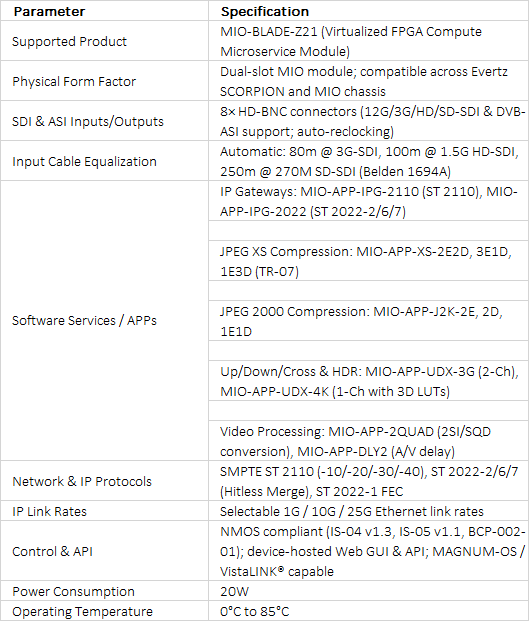

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Virtualized Microservice Media Processing

The Evertz MIO-BLADE-Z21 is a flexible, generic FPGA-based compute blade engineered for agile broadcast edge processing. By utilizing the Evertz Virtualized Compression Stack, the MIO-BLADE-Z21 allows facility operators to dynamically deploy, update, or swap software services (APPs) on the hardware as workflow requirements evolve. This software-defined paradigm eliminates fixed-function hardware constraints and supports both perpetual and temporal licensing models to help transition infrastructure investments toward operational expenditure (OpEx) models.

Multi-Format SDI and IP Gateway Services

Featuring eight high-density HDBNC connectors, the dual-slot module processes 12G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI signals with built-in automatic cable equalization and low-jitter reclocked outputs. The MIO-BLADE-Z21 offers out-of-the-box IP gateway APPs (MIO-APP-IPG-2110 and MIO-APP-IPG-2022) requiring no additional software licenses. These services provide eight configurable gateway paths with SMPTE ST 2110-10/20/30/40 and ST 2022-2/6 support, ST 2022-7 hitless redundancy, 2SI quad/single-link UHD conversion, and 1/10/25G link rate selection.

Scalable Compression, UDX, and Signal Processing APPs

Through additional application key licenses, the MIO-BLADE-Z21 supports specialized signal processing software applications:

JPEG XS Compression (MIO-APP-XS Series): Configurable encode/decode configurations using TR-07 for ultra-low latency transport up to 12G/4K.
JPEG2000 Codecs (MIO-APP-J2K Series): Supports bi-directional encoding and decoding paths for 3G/HD/SD-SDI transport.
Up/Down/Cross & HDR Conversion (MIO-APP-UDX Series): Provides single-channel 4K or dual-channel 3G conversion with 3D LUT HDR processing.
Audio/Video Delay & Quad-Link Conversion: Features dedicated delay software (MIO-APP-DLY2) providing up to 5 seconds of 3G or 10 seconds of HD delay, along with bi-directional UHD quad-to-single link format conversion (MIO-APP-2QUAD).
