Evertz MIO-BLADE-Z22-SFP Microservice MIO Module | FPGA Compute Blade with HDBNC & SFP I/O

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

FPGA-Accelerated Compute: Delivers low-latency, deterministic media and Ethernet processing.
Software-Reconfigurable Platform: Reflashes on demand to run different microservice applications.
Hybrid Connectivity: Provides 4x HDBNC and 2x SFP/SFP+ ports with 1/10/25G support.
Network & Video Ingestion: Enables network separation and direct optical video ingestion.
Reconfigurable Applications: Supports SRT gateway, ST 2110 firewall gateway, and ST 2022-2/7 FEC.
Dual-Slot MIO Design: Integrates across the Evertz SCORPION chassis lineup.
NMOS IP Control: Supports IS-04 and IS-05 for automated discovery and connection management.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

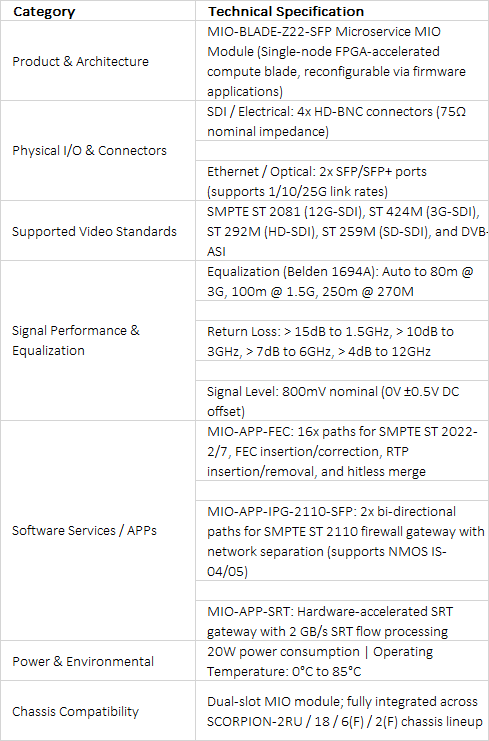

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

FPGA-Accelerated Virtualized Compute Architecture

The Evertz MIO-BLADE-Z22-SFP is a single-node, FPGA-accelerated microservice compute module engineered to combine the flexibility of virtualized software with the ultra-low latency and deterministic performance of dedicated hardware. Designed as a key expansion to the MIO-BLADE platform, this reconfigurable blade allows broadcast operators to dynamically reflash the module's firmware to execute specific, high-capacity media processing and IP transport functions at the network edge.

Integrated Optical SFP and Baseband Connectivity

Unlike standard SDI-only compute blades, the MIO-BLADE-Z22-SFP features direct optical and Ethernet interfacing on the card edge. Equipped with 4x 75Ω HDBNC connectors supporting up to 12G-SDI alongside 2x 1/10/25G SFP/SFP+ ports, the blade acts as a powerful optical video transceiver and physical network separation tool. This dual I/O structure enables direct ingestion of optical video streams while maintaining secure isolation between distinct network domains.

Specialized Utility Software Applications

By deploying targeted firmware applications, the MIO-BLADE-Z22-SFP adapts instantly to critical network processing roles:

Hardware-Accelerated SRT Gateway (MIO-APP-SRT): Delivers high-throughput 2GB/s SRT flow processing for secure, low-latency video transport over public IP networks.
ST 2110 Firewall Gateway (MIO-APP-IPG-2110-SFP): Provides 2 bi-directional SMPTE ST 2110 gateway paths with built-in network isolation and NMOS IS-04/05 management.
FEC & Hitless Merge Utility (MIO-APP-FEC): Features 16 processing paths capable of inserting FEC error correction, applying RTP removal, or executing SMPTE ST 2022-2/7 redundancy duplication and hitless merge protection.
