Key Features

FPGA Compute Blade: Single-node platform for flexible microservice-based media and network processing.
MIO Connectivity: Dual-slot form factor with 4× HD-BNC and 2× SFP/SFP+ ports supporting 1/10/25GbE.
Direct Ethernet Interface: Supports optical video ingestion, media processing, and FPGA-based network separation.
SDI & DVB-ASI: Supports 12G/6G/3G/HD/SD-SDI and DVB-ASI with automatic equalization and reclocking.
Reconfigurable Architecture: Runs dedicated software applications for media gateway and network firewall functions.
Specialized Processing: Supports ST 2110 firewalling, ST 2022-2/7 FEC processing, and hardware-accelerated SRT streaming.
Chassis Compatibility: Compatible with SCORPION-2RU, SCORPION-18, SCORPION-6/6F, and SCORPION-2/2F chassis.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

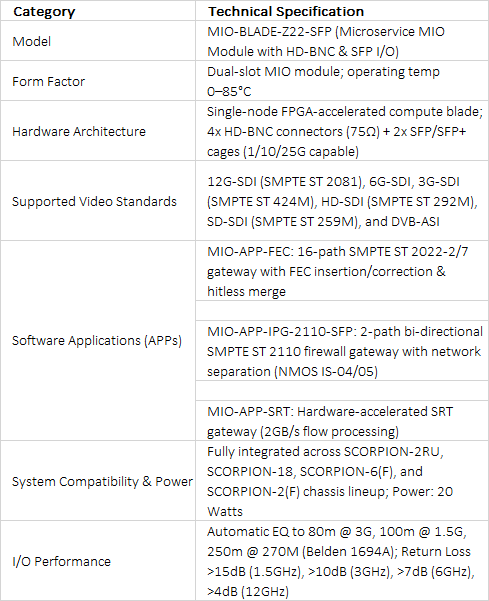

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

FPGA-Accelerated Compute with Optical & Electrical I/O

The Evertz MIO-BLADE-Z22-SFP expands the virtualized SCORPION ecosystem by integrating on-board SFP cages alongside traditional HD-BNC SDI interfaces. Designed as a reconfigurable, single-node FPGA processing engine, it delivers deterministic, low-latency media transformation while introducing direct card-edge optical connectivity.

Hybrid Edge Processing & Network Isolation

The onboard SFP/SFP+ ports allow the module to ingest optical signals directly or serve as an FPGA-driven network isolation tool between distinct network domains:

MIO-APP-IPG-2110-SFP: Operates as a utility SMPTE ST 2110 firewall gateway providing 2x bi-directional processing paths with NMOS IS-04/IS-05 management and complete network separation.
MIO-APP-FEC: Functioning as a SMPTE ST 2022-2/7 gateway, this app handles 16 processing paths with FEC insertion/correction, RTP header management, and hitless merge replication.
MIO-APP-SRT: Provides hardware-accelerated Secure Reliable Transport (SRT) processing capable of handling up to 2GB/s stream flows over unmanaged networks.
