Evertz MIO-CCM-4K/3G Closed Caption CEA-608 & CEA-708 Monitor & Analyzer

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Format Video Support: Auto-detects 12G/3G/HD/SD-SDI and SMPTE ST 2110 inputs.
CEA-608/708 Decoding: Provides monitoring, decoding, and analysis of legacy and digital closed captions.
XDS Metadata Decoding: Extracts V-Chip ratings, Network Name, Station ID, Program ID, and Time of Day data.
GPI Caption Shifting: Dynamically moves captions up or down to avoid overlap with on-screen crawls and EAS alerts.
Caption Error Monitoring: Displays real-time status overlays for missing, corrupted, or non-compliant caption data.
Caption Conductor Streaming: Optional +MS generates IP media monitoring streams for HD9084 and 7825CCE-3G encoders.
SCORPION Compatibility: Dual-slot MIO module for SCORPION-2, SCORPION-4/6, and SCORPION-X18 frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Specialized Caption Quality Assurance & Analysis

The Evertz MIO-CCM-4K/3G is a specialized closed caption monitor, decoder, and signal analyzer engineered for quality control in broadcast master control and QA facilities. Operating across both traditional SDI baseband and uncompressed SMPTE ST 2110 IP media networks, the module decodes and displays CEA-608 and CEA-708 closed captions directly onto monitoring outputs.

Advanced Metadata Extraction & Dynamic Positioning

Equipped with dynamic XDS packet decoding, the MIO-CCM-4K/3G extracts critical V-Chip ratings, program descriptions, and station identification codes directly from the vertical ancillary data (VANC). To ensure compliance during emergency broadcasts, the card supports GPI-triggered line shifting, allowing operators to automatically shift captions up or down to avoid obscuring Emergency Alert System (EAS) tickers.

SCORPION Frame Integration & Remote Management

Designed as a dual-slot MIO module, the unit fits into Evertz SCORPION edge-processing frames (supporting up to 8 cards in a SCORPION-X18). System administrators can remotely manage configurations, user presets, and alarm statuses using WebEasy, Evertz VistaLINK® SNMP, or MAGNUM orchestration platforms.

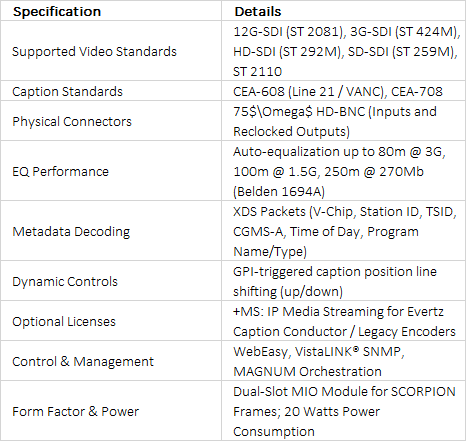

Technical Specifications +

technical specifications
