Evertz MIO-DM-SAT & MIO-CAM Series DVB-S/S2/S2X Receiver & CAM Modules

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Quad Satellite Demodulation: Supports DVB-S, DVB-S2, and DVB-S2X satellite reception.
Flexible RF Inputs: MIO-DM4-SAT4 provides 4 inputs, SAT2 provides 2 inputs with loop-outs, and SAT1 provides 1 input with loop-out.
CAM Decryption: MIO-CAM2 features dual PCMCIA DVB-CI slots, supporting up to 16 SPTS per module.
LNB Power: Provides selectable 13V/18V output, 22kHz tone generation, and up to 400mA.
Modulation Support: Supports QPSK, 8PSK, 16APSK, 32APSK, 64APSK, and APSK-L with CCM/VCM/ACM.
Transport Stream Processing: Supports PID filtering/remapping, 4× SPTS outputs per stream, and SMPTE ST 2022-1/2 TSoIP.
RF & TS Monitoring: Provides Es/N0, MER, BER, constellation maps, and continuity-counter error telemetry via web GUI/API.
High-Density Deployment: Supports up to 32 demodulators in a 1RU SCORPION-X18 chassis with QSFP IP output aggregation.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

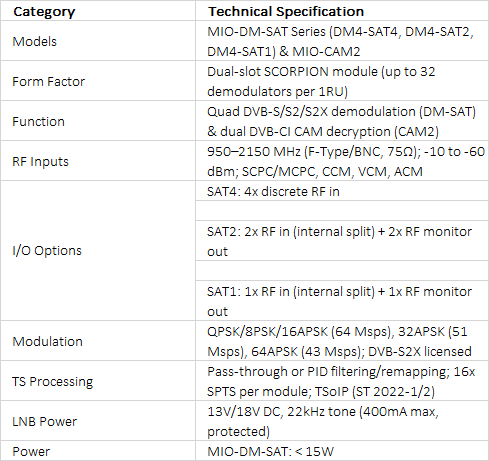

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Satellite Demodulation & Decryption Engine

The Evertz MIO-DM-SAT and MIO-CAM2 series provide hardware-based DVB-S/S2/S2X signal demodulation and Conditional Access (CA) decryption within the modular SCORPION ecosystem. Engineered for cable headends, DTH operators, IPTV providers, and broadcast facilities, these dual-slot MIO modules replace discrete receiver-decoders by unifying satellite ingest, de-scrambling, and IP distribution into a single chassis.

Flexible Input Architecture & Scalability

The MIO-DM-SAT series offers three RF input topology options to match facility routing needs:

MIO-DM4-SAT4: Features 4 independent F-Type/BNC inputs for discrete L-Band sources.
MIO-DM4-SAT2 & SAT1: Features internal active RF splitters to feed all four onboard demodulators from 2 or 1 input, complete with passive loop-through monitor outputs to eliminate external RF distribution.
MIO-CAM2: Pairs with receiver modules via chassis backplane routing to offer dual DVB-CI CAM slots for multi-service de-scrambling.
Density: Populate up to 8 dual-slot MIO-DM-SAT modules in a 1RU SCORPION-X18 frame for 32 satellite demodulation channels aggregated onto 100GbE QSFP outputs.
