Evertz MIO-IP-CCE Caption Encoding and Conversion Engine Module on MIO-CPU

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Caption Processing: FPGA-based engine for caption encoding, extraction, and conversion on MIO-CPU hardware.
SDI & IP Workflows: Supports HD/3G-SDI and SMPTE ST 2110-20 video / ST 2110-30 audio.
Caption Standards: Supports CEA-608, CEA-708, WST OP42/OP47, and bi-directional 608 ↔ WST conversion.
Channel Management: Provides channel/page remapping, data passthrough, up-conversion, and open-caption burn-in.
Live Captioning: Supports CTRL-A and NEWFOR serial/IP protocol insertion for real-time subtitling.
Shuffle Management: evEDGE-CCE-SHFL enables closed-caption and teletext channel mapping and translation.
Confidence Streaming: Optional low-latency A/V proxy feeds for live caption operators.
Timing & Monitoring: Supports Genlock/PTP synchronization, RTP packet monitoring, and test pattern generation.
Scalable Deployment: Compatible with Evertz SCORPION-SX18 and SCORPION-2RU frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

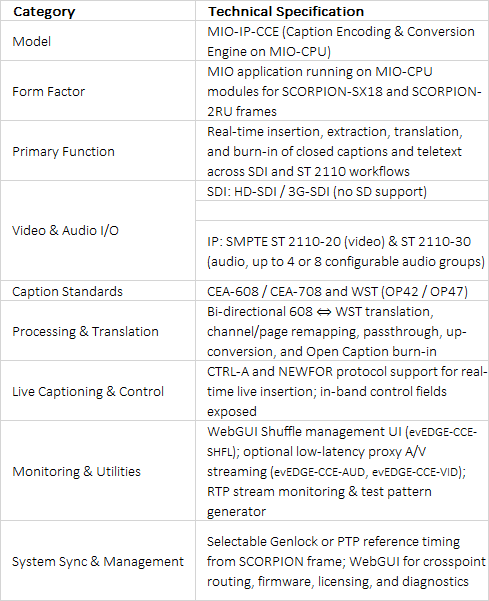

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Hybrid Baseband & IP Caption Engine

The Evertz MIO-IP-CCE on MIO-CPU is a software-defined closed captioning, teletext processing, and subtitling engine designed for high-density broadcast environments. Operating on the MIO-CPU hardware platform within Evertz SCORPION-SX18 and SCORPION-2RU chassis, the module provides a bridge between traditional SDI baseband infrastructures and modern SMPTE ST 2110 IP media networks.

Advanced Translation & Live Insertion

The MIO-IP-CCE handles complex international caption workflows through continuous translation and remapping:

Standard Conversion: Translates bi-directionally between North American CEA-608/708 standards and European WST (OP42/OP47) teletext formats while maintaining timing integrity.
Live Ingest: Supports CTRL-A and NEWFOR data protocols, enabling live stenographers and automated speech-to-text systems to insert real-time captions into active broadcast streams.
Confidence & Burn-In: Enables on-demand open caption rendering (burn-in) onto video feeds alongside proxy low-latency A/V streaming, allowing remote captioners to monitor output quality without dedicated hardware decoders.
