Evertz MIO-IP-CCE on MIO-CPU Real-Time Caption Encoding & Conversion Engine Module

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Hybrid SDI & IP Processing: Supports real-time caption insertion, extraction, and translation across HD/3G-SDI and SMPTE ST 2110-20/30 workflows.
CEA-608/708 & WST Conversion: Provides bi-directional translation between North American CEA-608/708 and European WST OP42/OP47 standards with channel/page remapping.
Live Caption Ingest: Supports CTRL-A and NEWFOR protocols for real-time caption and subtitle insertion.
Open Caption Burn-In: Enables selectable caption/teletext burn-in for confidence monitoring, graphics, and downstream workflows.
Proxy A/V Streaming: Optional evEDGE-CCE-AUD and evEDGE-CCE-VID streams provide low-latency program feeds for remote captioners and operators.
SCORPION Integration: Runs on MIO-CPU hardware within Evertz SCORPION-SX18 and SCORPION-2RU edge processing frames.
PTP & Genlock Sync: Supports IEEE 1588 PTP for ST 2110 networks and analog blackburst Genlock from the SCORPION backplane.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Software-Defined Captioning for Next-Gen IP & SDI Workflows

The Evertz MIO-IP-CCE is a software-defined caption encoding, conversion, and processing engine that runs on the high-performance MIO-CPU hardware platform. Engineered for high-density broadcast facilities, edge processing hubs, and live event production, the MIO-IP-CCE bridges the gap between traditional SDI infrastructures and uncompressed SMPTE ST 2110 IP media networks.

Comprehensive Global Caption & Subtitle Toolkit

Designed to simplify multi-region content delivery, the MIO-IP-CCE provides a complete set of caption manipulation features:

Multi-Standard Translation: Performs bi-directional conversion between CEA-608/CEA-708 VANC metadata and European World System Teletext (WST OP42/OP47) subtitling.
Channel & Page Remapping: The intuitive evEDGE-CCE-SHFL Shuffle Management UI allows station engineers to map, re-channel, pass through, or up-convert caption data on the fly.
Live Ingest & Open Captions: Ingests live steno streams via CTRL-A and NEWFOR protocols, with optional on-screen open caption burn-in for monitoring and QA setups.

Robust Network Management & Monitoring

Featuring a browser-based WebGUI, the MIO-IP-CCE provides complete control over internal crosspoint routing, firmware licensing, and diagnostics. For rapid QA and troubleshooting, the module includes RTP stream monitoring and built-in test pattern generators alongside optional proxy A/V streaming for remote steno-captioners.

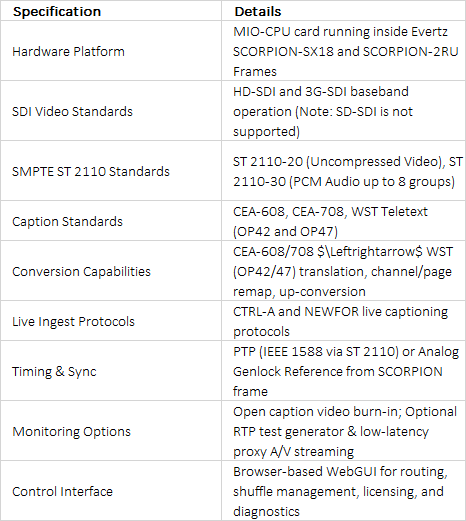

Technical Specifications +

technical specifications
