Evertz MIO-PTP Hybrid PTP / Sync Pulse Generator / Remote PTP Module

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Flexible Timing Engine: Operates as a Master Clock, SPG, or remote PTP slave.
OCXO Synchronization: Oven-controlled crystal oscillator locks to GNSS or PTP with selectable revertive/non-revertive failover.
Reference Outputs: Two independently timed outputs support Black Burst, Tri-Level Sync, Word Clock, and 10MHz.
Timing Alignment: Dedicated +1PPS and -1PPS outputs on individual HD-BNC connectors.
Multi-Constellation GNSS: Supports GPS, GALILEO, BEIDOU, GLONASS, and QZSS with smart or RF antennas.
PTP Support: Supports SMPTE ST 2059-2, AES67, and IEEE 1588 Annex-J with hardware timestamping.
Network Connectivity: Provides up to 2× 10GbE PTP/WAN ports and 2× redundant control network interfaces.
Compact Deployment: Dual-slot MIO design compatible with SCORPION-2F, 6F, S18, and SX18 frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

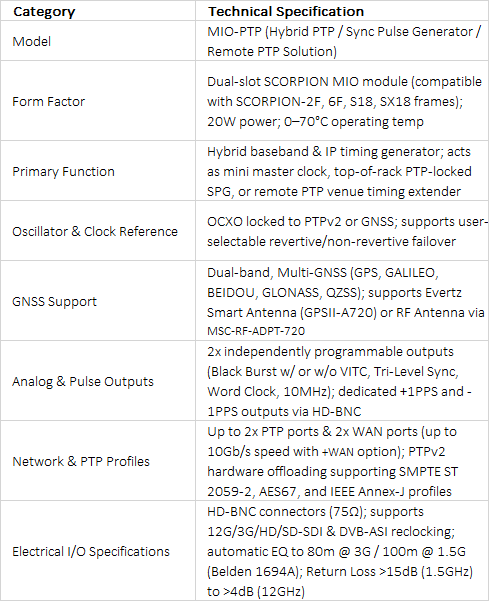

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Hybrid Baseband & IP Timing Engine

The Evertz MIO-PTP is a high-precision, small-form-factor timing and synchronization solution designed to bridge baseband analog sync with IP-based Precision Time Protocol (PTP) networks. Functioning as a standalone Master Clock, a top-of-rack Sync Pulse Generator (SPG), or a remote PTP extension node over WAN, the MIO-PTP eliminates the need for separate baseband distribution networks in hybrid broadcast environments.

Multi-Reference Fallback & Top-of-Rack SPG

Equipped with an onboard Oven Controlled Crystal Oscillator (OCXO), the MIO-PTP ensures continuous, ultra-stable system clocking:

Reference Flexibility: Locks to incoming PTP streams or direct GNSS satellite signals, featuring automatic revertive or non-revertive failover to maintain uninterrupted facility timing.
Baseband Output Generation: Provides two independently programmable analog reference outputs (Black Burst, Tri-Level Sync, Word Clock, 10MHz) alongside dedicated +1PPS and -1PPS align signals.
Remote Venue Deployment: Extends precise PTP timing over managed IP networks to arenas or remote production venues where installing a GNSS roof antenna is impractical.
