Evertz MIO-TG Test Signal Generator Module for Baseband & SMPTE ST 2110

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Test Signal Generation: Generates 4 independent signals over SMPTE ST 2110 with ST 2022-7 redundancy and baseband SDI.
UHD/HD Support: Supports up to 2× 4K/UHD or 2× HD/3G test pattern channels.
Mirrored Outputs: Provides 8× HD-BNC outputs with Main and Backup paths for HD/3G and UHD signals.
Audio Tone Generation: Provides 16 independent audio tones per signal with flexible grouping, frequency, and level selection.
Custom Patterns: Supports up to 16 user-defined PNG patterns, text overlays, and burn-in timecode.
Hybrid Timing: Supports Analog Black Burst/Tri-Level Sync and PTP timing via SMPTE ST 2059-2, AES67, and IEEE 1588 Annex-J.
NMOS & Control: Supports AMWA NMOS IS-04 v1.3, IS-05 v1.1, BCP-002-01 v1.0, REST API, SNMP, MAGNUM-OS, and VistaLINK PRO.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

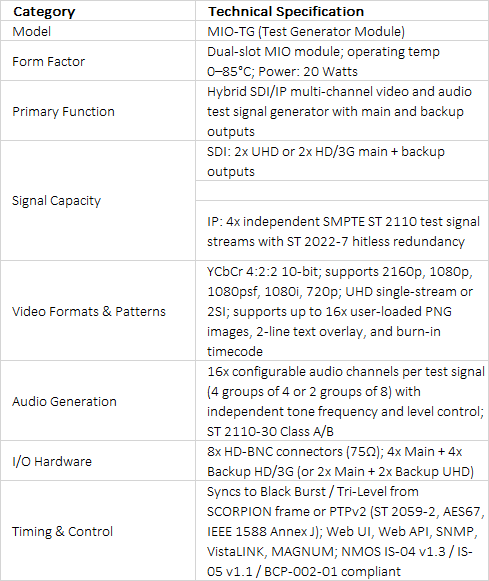

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Hybrid Baseband & IP Test Generator

The Evertz MIO-TG is a virtualized, microservice-based test signal generator designed to support SDI, IP, and hybrid broadcast facilities. Occupying a dual-slot MIO form factor within Evertz SCORPION chassis, the MIO-TG simultaneously generates up to 4 independent test signals across baseband HD/3G/12G-SDI connectors and uncompressed SMPTE ST 2110 IP streams with ST 2022-7 seamless hitless redundancy.

Custom Patterns & Multichannel Audio Test Signals

Engineered for rapid facility setup, signal path verification, and quality assurance:

Custom Graphics & Overlays: Supports up to 16 user-loadable PNG test patterns alongside standard YCbCr 4:2:2 10-bit patterns. Features user-defined 2-line text ID overlays and selectable burn-in timecode for easy channel identification across control room monitors.
Flexible Audio Generation: Broadcasts up to 16 independent audio tones per video signal path via ST 2110-30 (Levels A and B) or embedded SDI audio, complete with customizable per-channel frequency and level controls.
Broad Format Range: Generates standard frame rates from 720p and 1080i up to 1080p and 2160p (at 23.98 through 60 fps).
