Evertz MIO-TM2-4K Dual-Path 12G/3G/HD Timecode Processing Module

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Dual-Path Processing: Independently processes two 12G/3G/HD-SDI video streams.
Timecode Processing: Reads, generates, monitors, and inserts LTC, VITC, and ATC from SDI or SMPTE ST 2110-40 sources.
OSD Burn-In: Inserts generator time, reader time, and user bits with adjustable position, font size, and background opacity.
Flexible I/O: Provides 4× SDI inputs, 4× outputs, and 2× backplane crosspoint I/O via HD-BNC connectors.
Timecode Transcoding: Supports ATC-VITC ↔ LTC/ATC, ATC-LTC ↔ VITC/ATC, and Frame Reference VITC → LTC/ATC conversion.
Program & Monitor Outputs: Provides dedicated PGM outputs with OSD burn-in and MON outputs for each processing path.
Diagnostics: Enables real-time timecode delta monitoring between both processing paths.
System Control: Supports WebEASY, MAGNUM-OS, SNMP, and REST API control across SCORPION frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

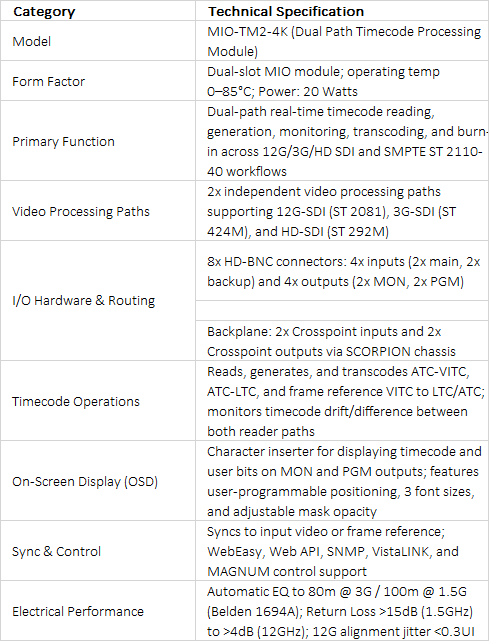

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Dual-Path Timecode Engine

The Evertz MIO-TM2-4K is a specialized timecode reader, generator, transcoder, and character inserter designed for 12G-SDI 4K/UHD and HD production environments. Occupying a dual-slot MIO form factor inside Evertz SCORPION frames, the module delivers two completely independent video processing channels, ensuring precise ancillary timecode synchronization and visual verification for live broadcast and post-production workflows.

Advanced Transcoding & Visual Character Insertion

The MIO-TM2-4K unifies ancillary timecode management across physical and IP-based sources:

Multi-Format Transcoding: Automatically reads ATC-LTC, ATC-VITC, or reference VITC, transcoding data dynamically between LTC and VITC formats across 12G, 3G, and HD-SDI signals.
On-Screen Display Burn-In: Features user-programmable character inserters on MON and PGM outputs. Operators can overlay time, user bits, and diagnostic data with three font sizes and adjustable background transparency.
Diagnostic TC Delta Monitoring: Continuously compares reader timecode values between both video paths to calculate and display time differences, making it an essential tool for multi-camera align verification and latency tracking.
