Evertz MUXIP-10GE-2RU-V52 High-Density 10GbE IP Re/De-Multiplexer

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density IP Multiplexing: Demuxes/remuxes up to 128 SPTS/MPTS IP inputs to 128 outputs.
Stream Grooming: Supports program/PID remapping, DVB/ATSC table generation, and bitrate limiting.
Multi-Level Redundancy: Provides Service, Socket, Port, and 1:1/M device failover via VistaLINK PRO CSM NMS.
High-Capacity Connectivity: Provides 2x 10GbE SFP+ and 2x 1GbE RJ-45 ports for Unicast/Multicast workflows.
Stream Health Diagnostics: TSM-Lite monitors TS loss, CC errors, and bitrate per stream.
Metadata Processing: Supports in-band private PID metadata insertion for tagging and device control.
Mission-Critical Design: 2RU chassis with dual redundant power supplies for high uptime.
System Control: Provides HTTP web server, dedicated 1GbE management, and SNMP via VistaLINK PRO.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Transport Stream Grooming and Remultiplexing

The Evertz MUXIP-10GE-2RU-V52 is an enterprise-class, 2RU rackmount IP re-multiplexer designed for high-density broadcast headends, satellite distribution centers, cable networks, and IPTV infrastructures. Supporting up to 128 input sockets and 128 output sockets, the platform allows broadcast operators to ingest, filter, groom, and multiplex pre-encoded Single Program Transport Streams (SPTS) and Multiple Program Transport Streams (MPTS) into bandwidth-optimized output streams ready for linear distribution.

Advanced Stream Protection, Bitrate Limiting, and Table Generation

Built for strict signal integrity and broadcast compliance, the MUXIP-10GE engine incorporates robust stream management tools:

Per-Program Bitrate Limiting: Restricts individual stream bandwidth spikes to prevent input bursts from corrupting shared output multiplexes.
DVB/ATSC Table Generation: Automatically constructs and updates critical system information tables (PSI/SI and PSIP) for accurate receiver tuning and program guide population.
In-Band Metadata Insertion: Enables direct injection of custom metadata into private PIDs, enabling downstream automated actions such as firmware updates or data tagging.
Integrated Diagnostics: Internal TSM-Lite per-stream monitoring tracks Continuity Counter (CC) errors, signal loss, and bitrates in real time.

Comprehensive Multi-Tier Redundancy & IP Connectivity

The MUXIP-10GE-2RU-V52 features robust physical network interfaces including 2x 10GbE SFP+ data ports and 2x 1GbE RJ-45 streaming interfaces supporting both Constant Bitrate (CBR) and Variable Bitrate (VBR) formats. When paired with Evertz VistaLINK PRO CSM Network Management Software, the platform offers full multi-tiered resilience—enabling automated failover at the individual Service, IP Socket, Physical Port, or 1:1 / M:N Hardware Chassis levels.

Enterprise 2RU Form Factor and Centralized Management

Engineered for continuous 24/7 mission-critical operations, the 2RU appliance features dual hot-swappable redundant power supplies (920W). Broadcast engineers can easily deploy, configure, and monitor multiplexing topologies using the onboard web GUI or centrally orchestrate large-scale network deployments using Evertz VistaLINK PRO via SNMP.

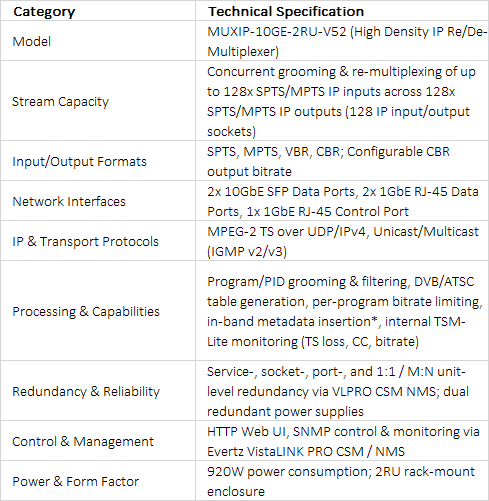

Technical Specifications +

technical specifications
