Evertz SCORPION-16 High-Density 1RU MIO Carrier Chassis

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density Frame: 1RU chassis supporting up to 16 single-slot or 8 dual-slot Evertz MIO modules.
Flexible Processing: Supports video processing, frame sync, format conversion, audio embedding/de-embedding, and IP encoding.
Cost-Effective Design: Provides direct processing without internal routing or switching fabrics, supporting external switch integration.
Frame Control: Hot-swappable controller with 1GbE RJ-45 out-of-band management and optional redundant controller.
Redundant Power: Hot-swappable 400W 120V AC power supply with optional redundant PSU.
Cooling: Front-accessible hot-swappable fan array provides efficient side-to-side airflow.
Timing Support: Includes BNC analog reference input for 525/625 formats and NTP network timing.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Modular Carrier Solution

The Evertz SCORPION-16 is a compact 1RU carrier chassis engineered to maximize module density for edge processing, signal conversion, and IP gateway applications. Streamlined specifically for facilities utilizing external switch fabrics or straightforward SDI processing pipelines, the SCORPION-16 omits internal crosspoints to deliver a low-cost, high-density MIO hosting platform.

Versatile Processing Footprint

By accepting up to 16 single-slot or 8 dual-slot Evertz Modular Input Output (MIO) cards, the chassis allows broadcast engineers to mix and match hardware functions within a shallow 9-inch frame depth:

Processing Capabilities: Populate cards for 12G/3G-SDI video conversion, HDR color correction, audio shuffling/embedding, and stream encoding.
Streamlined Operations: Ideal for high-density edge deployments where space, power efficiency, and direct input/output interface management are essential.

Redundancy & Serviceability

Built for continuous mission-critical operation, the SCORPION-16 features front-loading, hot-swappable fans, power supplies, and frame controllers. Out-of-band management is handled via Gigabit Ethernet, ensuring smooth integration into facility-wide monitoring networks.

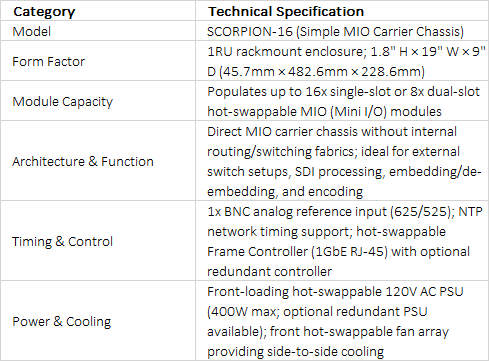

Technical Specifications +

technical specifications
