Key Features

High-Density Platform: 1RU media platform with integrated 12G SDI crosspoint matrix.
MIO Capacity: Supports up to 18 single-slot or 8 dual-slot Evertz MIO processing modules.
High-Speed Connectivity: Features 18 SFP cages plus dual QSFP ports supporting 1/10/25/40/100GbE.
IP Fabric Options: Supports optional bulk gateway FPGA (IPG) or Ethernet switch module (IPX).
NMOS Compliance: Supports IS-04 v1.3, IS-05 v1.1, and BCP-002-01 v1.0 for open IP routing and discovery.
Redundant Power: Uses external 48V DC 4-pin XLR inputs with optional redundant PSX or 1RU bulk power supplies.
Network Management: Supports SNMP, web interface, hardware control panels, and VistaLINK PRO.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

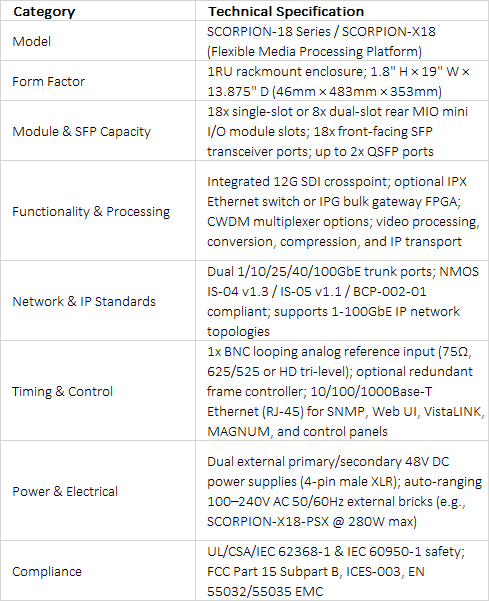

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Broadcast Modular Hub

The Evertz SCORPION-18 series is a versatile 1RU "Swiss Army knife" media toolkit designed for video conversion, media transport, and IP edge applications. By uniting baseband SDI, optical conversion, and high-speed IP networks into a single chassis, the SCORPION-18 allows broadcasters to seamlessly bridge traditional SDI environments with 1/10/25/40/100GbE IP infrastructures.

Onboard 12G Routing & Advanced IP Fabric

Unlike passive carrier frames, the SCORPION-18 features powerful built-in core resources:

Integrated 12G Crosspoint: Routes baseband signals directly between any of the 18 front SFP cages and rear MIO module slots without consuming external card capacity.
IP Fabric Options: Add an optional bulk gateway FPGA (IPG) or Ethernet switch (IPX) to enable native SMPTE ST 2110 IP encapsulation, aggregation, and edge routing.
Flexible Processing: Accepts a massive catalog of MIO modules for 12G-SDI frame synchronization, up/down/cross conversion, audio embedding, and compression codecs.
