Evertz

Evertz SCORPION-2RU Flexible Media Edge Processing Platform

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Media Edge Compute: 2RU platform for transport, conversion, and routing across SDI, IP, and fiber.
High-Density MIO Support: Accommodates up to 36 single-slot or 18 dual-slot Evertz MIO modules.
High-Speed Networking: Supports up to 4× QSFP-DD ports from 1GbE to 800GbE, plus MIO SFP ports down to 1Gbps.
Codec & IP Support: Supports JPEG-XS, JPEG-2K, HEVC, SMPTE ST 2110, and ST 2022-7 hitless switching.
Integrated Processing: Includes timing processor, SDI routing matrix, test pattern generator, signal analyzer, and HDMI display driver.
Redundant Cooling & Power: Features hot-swappable dual 1500W AC power supplies and front-to-rear fan assembly.
Frame Control: Provides primary and optional redundant frame controllers with 1GbE RJ-45 management interfaces.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

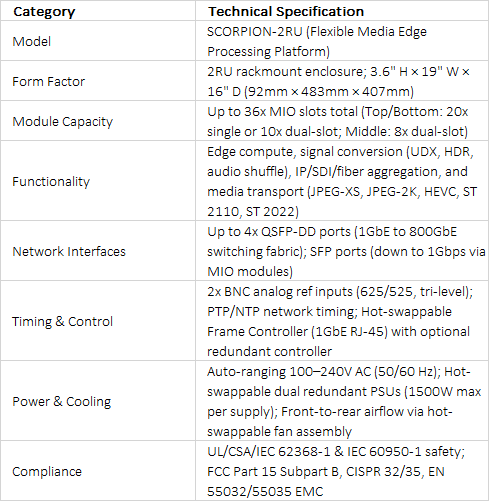

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density Media Edge Compute

The Evertz SCORPION-2RU is a high-density, multi-service edge compute platform engineered for facility production, remote acquisition, and signal transport. By bridging baseband SDI, native IP networks, and optical fiber links, the SCORPION-2RU aggregates, processes, and routes video, audio, and metadata across local or wide-area media networks.

Flexible Signal Transport & Processing

Equipped with up to 36 MIO module slots and up to 4 QSFP-DD interfaces (supporting speeds up to 800GbE), the unit handles complex signal processing tasks:

Video Conversion & Codecs: Supports JPEG-XS, JPEG-2K, HEVC, ST 2110, and ST 2022 along with frame synchronization, up/down/cross conversion, and 3D LUT HDR processing.
Audio & Ancillary Data: Handles audio embedding, de-embedding, shuffling, and gain adjustments (MADI, AES, Analog) alongside serial data, GPIO, and SCTE processing.
Network Reliability: Features FEC and retransmission technologies for lossy network transport, combined with hitless switching for redundancy.
