Evertz SCORPION Compatible SFP & QSFP Optical and Electrical Transceiver Modules

Evertz Video Router

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Hot-Swappable Transceivers: Supports SFP, SFP+, SFP28, QSFP+, and QSFP28 modules for Evertz SCORPION frames.
Broad Signal Support: Handles SDI video, copper/optical Ethernet, CWDM, and DWDM signals.
SDI Connectivity: Supports 12G/3G/HD/SD-SDI with electrical HD-BNC/DIN 1.0/2.3 and optical interfaces.
High-Speed Ethernet: Supports 1GbE, 10GbE, 25GbE, 40GbE, and 100GbE IP media links.
Flexible Optical Options: Offers multimode 850nm and single-mode 1310nm/1550nm, CWDM, and DWDM configurations.
Extended Link Distances: Supports connections from short-reach patch leads up to 120km long-haul links.
SCORPION Compatibility: Compatible with SCORPION-2, SCORPION-4, SCORPION-6, and SCORPION-18 frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Universal Interconnect for the SCORPION Platform

Evertz SCORPION Compatible SFP and QSFP modules provide the critical physical layer connectivity for SCORPION flexible media processing platforms. By equipping SCORPION chassis with modular optical and electrical transceivers, broadcast facilities can freely adapt edge inputs and trunk outputs to match local facility cabling—whether bridging baseband 12G-SDI coaxial lines, single-mode fiber links, or high-throughput 100GbE SMPTE ST 2110 IP backbones.

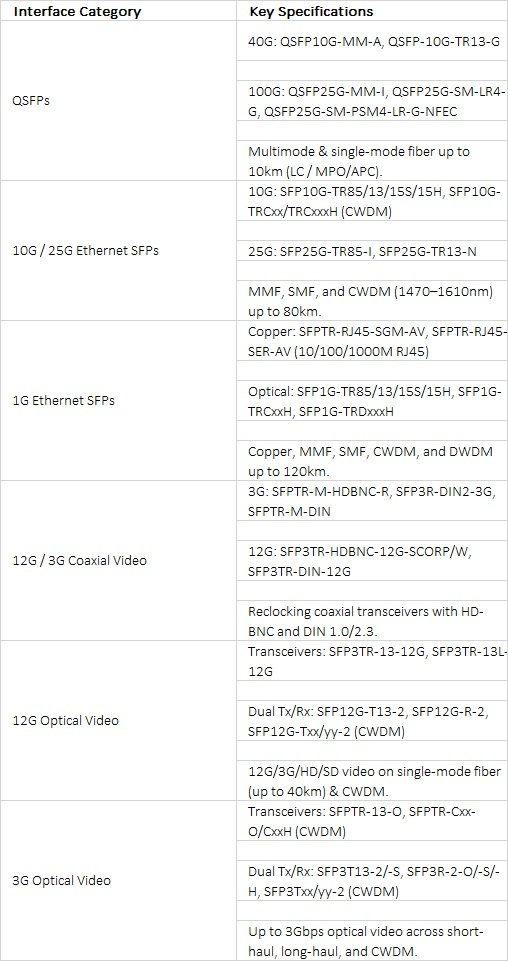

Modular Transceiver Product Categories

100G & 40G QSFP Optics: High-density QSFP28 and QSFP+ modules (including QSFP28-SM-LR4-G, QSFP28-SM-PSM4-LR-G-NFEC, and QSFP25G-MM-I) designed for 100GbE IP fabric trunking over MPO or LC fiber.
25G & 10G Ethernet SFPs: SFP+ and SFP28 modules (SFP25G-TR13-N, SFP10G-TR85, SFP10G-TR15H, CWDM variants) for ST 2110 IP media transport and control networks.
12G & 3G Coaxial Video SFPs: Reclocked HD-BNC and DIN 1.0/2.3 transceivers (SFP3TR-HDBNC-12G-SCORP, SFPTR-M-HDBNC-R) enabling high-density coaxial SDI I/O directly on SFP cages.
12G & 3G Optical Video SFPs: Dual transmitters, dual receivers, and transceivers (SFP3TR-13-12G, SFP12G-Txx/yy-2 CWDM) for long-distance SDI transport.
1GbE & Copper SFPs: RJ45 copper transceivers (SFPTR-RJ45-SGM-AV) and extended-reach 1.25Gbps optics including DWDM channel options up to 120km.
