Evertz SCORPION IPX Series | Low-Density GbE Aggregation Fabric & Media Switch

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Broadcast-Optimized SDVN Fabric: Provides a 1/10/25/40/100GbE switch fabric for deterministic, high-capacity, low-latency video and audio routing.
High-Density Port Allocation: Provides 16x 1/10GbE SFP/SFP+ ports and 2x 1/10/25/40/100GbE QSFP uplinks for leaf aggregation.
Advanced IP Routing & Traffic Management: Supports multicast/unicast, VLAN framing, IGMP/SDN routing, source discovery, and flow bandwidth policing.
Precision Timing & Telemetry: Features Transparent Clock operation, real-time flow monitoring, SNMP/API control, and telemetry streaming.
Plug-and-Play Broadcast Architecture: Provides native broadcast protocol support and familiar 3080/9080 IPX interfaces without complex IT switch programming.
High-Availability Design: Includes dual 1GbE RJ45 out-of-band management ports, hot-swappable redundant frame controllers, redundant AC power supplies, and hot-swappable fan arrays.

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Performance IP Media Aggregation & Routing

The Evertz SCORPION IPX Series provides a network-based broadcast distribution platform built on Evertz's Software Defined Video Network (SDVN) architecture. Serving as a low-density 1/10G media aggregation fabric or leaf switch, it optimizes high-bandwidth port utilization for uncompressed and compressed video, audio, and data flows across IP broadcast infrastructures.

Deterministic Performance & Comprehensive Traffic Control

Low-Latency Switching: Designed specifically for real-time media transport, providing deterministic flow routing without the overhead or latency spikes typical of generic IT appliances.
Bandwidth Policing & Flow Management: Features granular multicast flow policing, source discovery, Spanning Tree Protocol (STP), and Transparent Clock mode for precise network synchronization.
Complete System Monitoring: Fully integrates with Evertz VistaLINK PRO and MAGNUM orchestration environments for full flow monitor streaming, telemetry analysis, and API/SNMP network management.

Redundant Enterprise Hardware Architecture

Occupying a compact 1RU chassis, the IPX platform includes dual hot-swappable frame controllers with dedicated out-of-band management ports, hot-swappable left-to-right cooling fan assemblies, and external auto-ranging redundant power supply options.

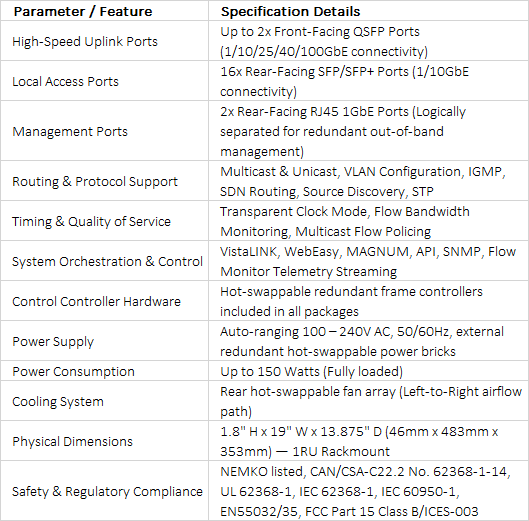

Technical Specifications +

technical specifications
