Evertz TSMIP-10GE-2RU-V52 High-Density 10GbE IP Transport Stream Monitor

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Remote Monitoring Probe: Continuously analyzes up to 256 IP transport streams in a 2RU software-based platform.
MPEG-2 & H.264 Support: Monitors compressed video across IPTV, cable, satellite, and terrestrial networks.
ETSI TR 101 290 Analysis: Detects Priority 1, Priority 2, and Priority 3 DVB/ATSC errors.
IP-Layer Analysis: Supports IGMP v1/v2/v3 multicast and MDI loss/delay measurements.
Real-Time Diagnostics: Provides T-STD analysis, PID tree visualization, and PID/TSID template verification.
Multi-Point Comparison: Helps isolate encoder faults from network transit errors.
Automated Response: Provides scripting for event handling with multi-service ingest and NFS server/client support.
High-Bandwidth Connectivity: Provides 2x 10GbE SFP, 2x GbE RJ-45 streaming, and 2x GbE RJ-45 control ports.
Centralized Monitoring: Integrates with VistaLINK PRO for telemetry, dashboards, and SNMP alarm traps.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

High-Density IP Transport Stream Quality Assurance

The Evertz TSMIP-10GE-2RU-V52 is a high-capacity, software-driven 2RU rackmount monitoring probe designed for large-scale broadcast headends, contribution centers, and IP distribution networks. Supporting concurrent analysis of up to 256 transport streams over high-bandwidth 10GbE interfaces, the platform provides service providers with total visibility into signal integrity—enabling network operators to distinguish compression encoder errors from IP delivery disruptions instantly.

Comprehensive TR 101 290 & Buffer Analysis

Engineered for rigorous compliance testing, the TSMIP-10GE evaluates MPEG-2 and H.264 streams against established international broadcast standards:

TR 101 290 Monitoring: Performs detailed Priority 1 (sync loss, PAT/PMT errors, continuity counter), Priority 2 (transport errors, CRC, PCR accuracy/repetition, PTS), and Priority 3 (DVB NIT/SDT/EIT and ATSC MGT/VCT/STT) error tracking.
Stream & PID Metrics: Measures total stream and individual PID bitrates from 100 kbps to 200 Mbps with user-settable alarm limits. Renders a full PID tree view showing codecs, program IDs, video resolutions, and audio sampling rates.
T-STD Buffer Analysis: Real-time Target System Decoder (T-STD) buffer testing flags potential buffer underruns and overruns before they impact viewer experience.

Network Layer Diagnostics and Automated Response

Equipped with dual 10GbE SFP slots and dual Gigabit Ethernet data ports, the probe subscribes to multicast feeds using IGMP v1/v2/v3 and calculates Media Delivery Index (MDI) parameters to assess packet jitter and loss. The platform includes an auto-response scripting engine to execute automated corrective workflows, multi-point stream comparison tools to evaluate feeds across different network nodes, and built-in NFS server/client capabilities for dense multi-service ingest.

Enterprise 2RU Appliance Architecture & NMS Integration

Built into a 2RU chassis with an integrated frame controller and dual redundant power supplies (920W), the TSMIP-10GE is designed for uninterrupted 24/7 operations. Network engineers can manage settings directly or orchestrate full network monitoring environments through Evertz VistaLINK PRO NMS using SNMP traps, custom graphical views, and detailed error reports.

Technical Specifications +

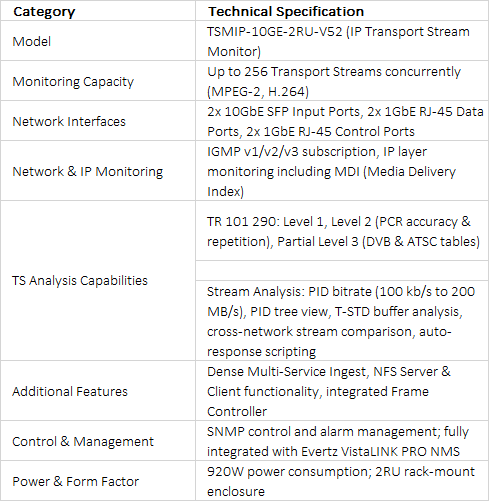

technical specifications
