Evertz VUE-TOUCH10 10.1-Inch Software-Defined Touch Control Panel

Evertz Video Routers

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

VUE Touch Control Panel: Software-defined 10.1" desktop panel powered by the Evertz VUE engine.
High-Resolution Display: 1280×800 touchscreen with 800:1 contrast ratio.
Context Switching: Enables rapid switching between customized workflow control layouts.
Multi-Device Orchestration: Supports XY routing, multiviewers, A/V processing, infrastructure control, salvos, third-party devices, and monitoring.
Compact Controller: Mini-PC design with 2x 1GbE RJ-45 LAN ports.
Peripheral Connectivity: Provides 4x USB 3.0, 2x HDMI 1.4b monitor outputs, and 3.5mm headphone output.
Broadcast Applications: Designed for desktop use in master control, production suites, and mobile OB units.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Interactive Software-Defined Touch Platform

The Evertz VUE-TOUCH10 is a compact 10.1-inch desktop touch control panel engineered to deliver intuitive, software-defined control across modern broadcast facilities. Operating as an interactive interface to the Evertz Orchestration Layer (MAGNUM-OS), the VUE-TOUCH10 replaces static hardware panels with customizable, dynamic touch controls capable of managing routing, signal processing, multiviewers, and third-party broadcast equipment.

Context-Oriented Workflow Engine

Built around the concept of adaptive operational control, the VUE-TOUCH10 enables users to switch between customized "contexts" instantly:

Workflow Adaptability: Group specific parameters—such as XY routing grids, audio/video proc amp controls, salvos, and multiviewer snapshots—into dedicated operational screens for specific roles or production phases.
Monitor by Exception: Highlight system alerts and fault conditions directly on the touch screen, giving operators immediate visual awareness to fix issues quickly.
Comprehensive Integration: Natively interface with Evertz baseband and IP routing matrices as well as external devices via standardized control protocols.

Hardware Architecture & Desktop Design

The VUE-TOUCH10 system consists of an ergonomic 10.1-inch touchscreen display paired with a dedicated Mini-PC controller module (5.54" x 1.06" x 4.23"). The controller features dual 1GbE Ethernet ports for network communication, external HDMI outputs, four USB 3.0 ports, and a 3.5mm headphone jack. Powered via an included 19V DC power supply, the unit provides a space-saving desktop control solution for live production environments.

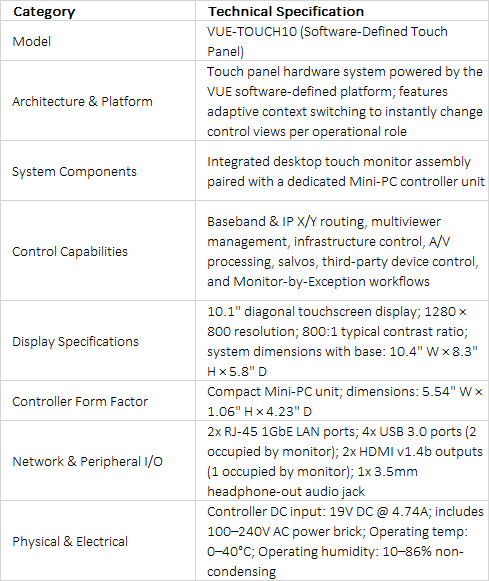

Technical Specifications +

technical specifications
