Evertz X-CALIBER 1RU High-Density Media Edge Processing Chassis

Evertz Signal Processing

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

High-Density 1RU Platform: Supports up to 8 XIO blade modules in a compact chassis.
High-Capacity Compression: Handles up to 64 HEVC/H.264 or 128 JPEG-XS encoding/decoding paths.
High-Speed Networking: Provides 2.6Tbps internal switching and up to 800Gbps network capacity via 4x QSFP-DD ports, with SFP adapter support.
Flexible Synchronization: Supports dual analog BNC references for Tri-Level/525/625 signals, plus PTP and NTP timing.
XPS Processing Blade: Provides 16x HD-BNC ports for H.264/HEVC, supporting up to 8 encode, 8 decode, or 4x4 bi-directional SDI paths.
X45 Processing Blade: Provides 16x HD-BNC ports for JPEG-XS TR-07, supporting up to 16 decode or 8x8 bi-directional SDI/ST 2110 paths.
Redundant Architecture: Features hot-swappable front-to-rear fans, redundant frame controllers with 1GbE management, and dual 1200W AC PSUs.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

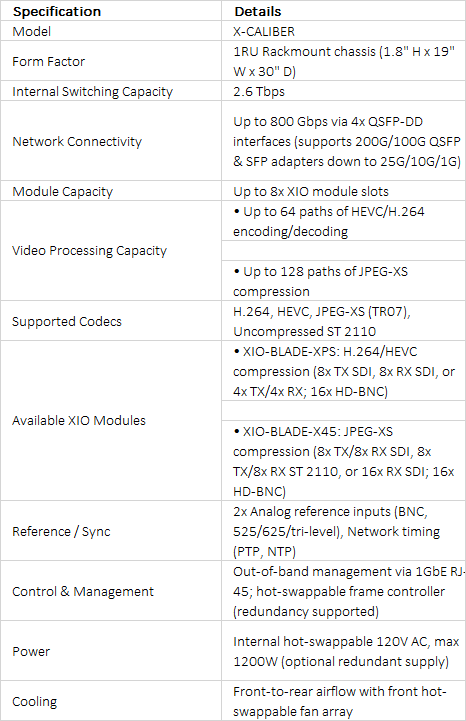

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Next-Gen Bulk Processing & Media Edge Infrastructure

The Evertz X-CALIBER is a high-density hardware platform built for large-scale video encoding, decoding, and transport at the network edge. Designed to complement Evertz core processing platforms, X-CALIBER provides granular, high-channel-count media conversion in a 1RU footprint—making it an ideal solution for contribution, primary distribution, venue interconnects, and IP migration.

Massive Bandwidth & Modular XIO Blades

Featuring a 2.6 Tbps internal Ethernet switching fabric and up to 800 Gbps of network connectivity across four QSFP-DD ports, X-CALIBER easily manages high-throughput uncompressed ST 2110 and compressed video workflows. The chassis holds up to 8 modular XIO processing blades:

XIO-BLADE-XPS: Dedicated to H.264 and HEVC codecs. Configurable for 8-channel SDI encoding, 8-channel SDI decoding, or a 4-channel bi-directional split across 16 card-edge HD-BNC ports.
XIO-BLADE-X45: Optimized for ultra-low-latency JPEG-XS (TR07) compression. Configurable for 16 SDI decodes, 8x8 SDI-to-JPEG-XS encode/decode, or 8x8 ST 2110-to-JPEG-XS transcode paths.
