FM-215HDR 21.5 inch 1000nits 12G-SDI HDR QD-LED Field Monitor
Product
Warranty
Support
Delivery
Key Features
Key Features
- 21.5-inch Full HD QD-LED display (1920×1080)
- 1000nits high brightness for outdoor visibility
- HDR support (PQ / HLG / S-log3)
- 100% DCI-P3 wide color gamut
- 12G-SDI, Quad 3G-SDI & HDMI 2.0 4K inputs
- Multi-view: Quad, PBP, PIP & vertical display
- Ultra-low latency (0.01 frame)
- Built-in and user 3D LUT support
- Automatic 3DLUT calibration (no PC required)
- Waveform, vectorscope, histogram & focus tools
- Flight case and screen protector included
- Optional VESA to C-stand mounting support
Features & Specifications
Product Overview +

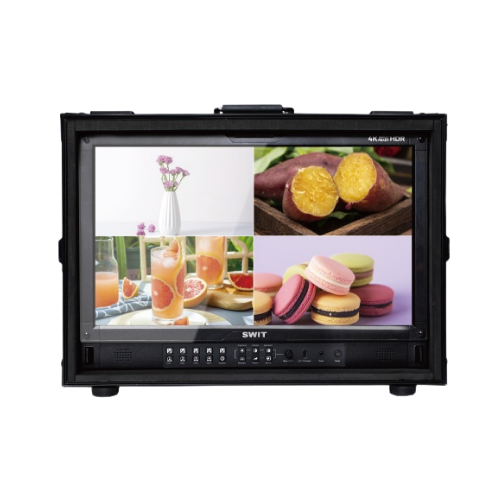

High Bright HDR Display
The FM-215HDR features a 21.5-inch QD-LED panel with 1000nits brightness, ensuring clear visibility even under direct sunlight. It supports HDR formats including PQ, HLG, and S-log3 for accurate exposure and color reproduction.
Advanced Color Accuracy
With 100% DCI-P3 color gamut and 10-bit color depth, this monitor delivers highly accurate and vibrant colors. The built-in 3DLUT system and automatic calibration ensure professional-grade color consistency.
Professional 4K Connectivity
Equipped with 12G-SDI, Quad 3G-SDI, and HDMI 2.0 inputs, the monitor supports a wide range of 4K workflows. It allows seamless integration with cinema cameras and broadcast equipment.
Multi-View Monitoring
The monitor supports quad-view, picture-by-picture (PBP), and picture-in-picture (PIP) modes. Users can monitor multiple input sources simultaneously, making it ideal for live production and multi-camera setups.
Ultra-Low Latency Performance
With near-zero latency (0.01 frame), the FM-215HDR ensures real-time monitoring without delay, essential for focus pulling and live switching.

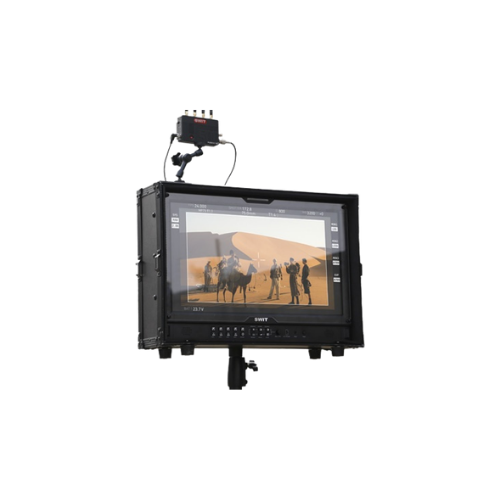

Built for Field Production

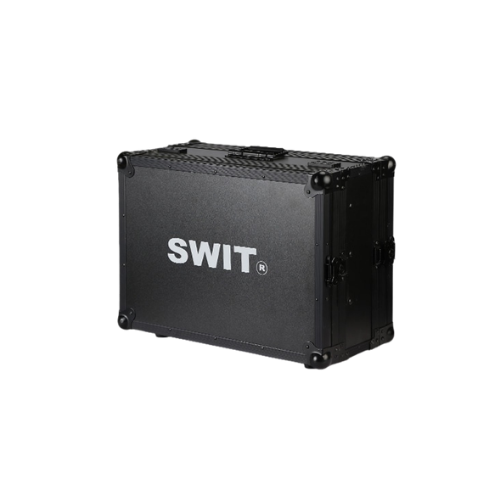

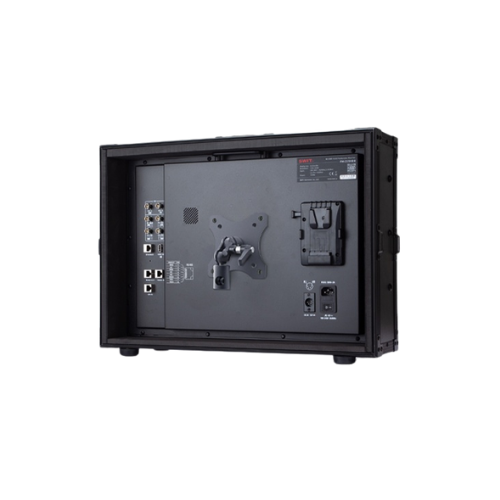

The monitor comes with a durable flight case, screen protector, and mounting options. It is designed for rugged on-set use and easy transport.

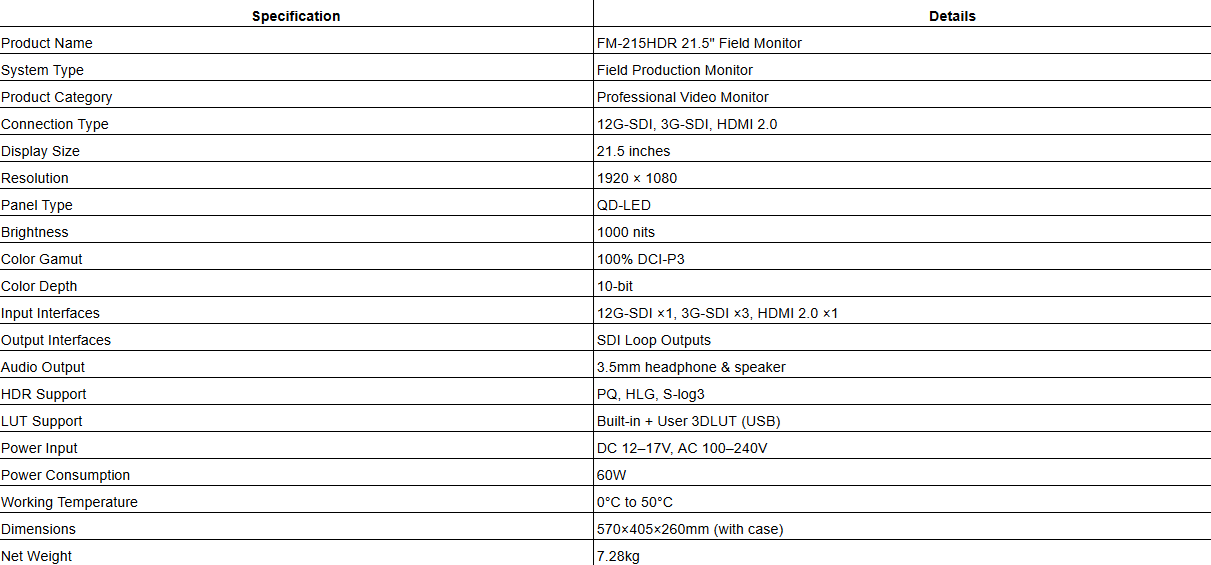

Technical Specifications +
technical specifications
