4K HDR High Bright Display

The FM-U245HDR features a 23.8-inch 4K UHD panel with 1000nits brightness, ensuring clear visibility even in direct sunlight. It supports HDR formats including HLG, PQ, and S-log3 for accurate exposure and color monitoring.

Advanced 12G-SDI & 8K Ready Connectivity

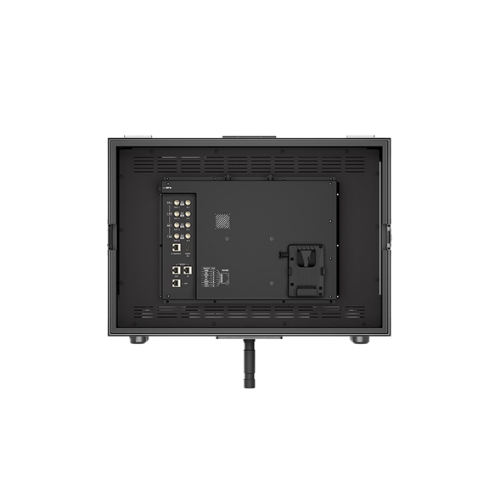

Equipped with 4× 12G-SDI inputs and outputs, the monitor supports quad-link 4K and even 8K workflows. HDMI 2.0 input ensures compatibility with a wide range of professional video sources.

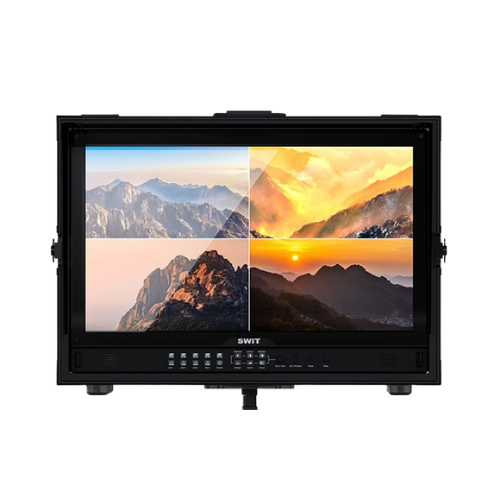

Multi-View Monitoring Flexibility

The monitor supports quad-view, picture-by-picture, and picture-in-picture modes. It allows simultaneous monitoring of multiple signals with independent HDR/SDR and color settings.

Professional Color Management

Supports multiple SDR and HDR gamma options along with built-in DeLog LUTs for major camera brands. Users can upload up to 13 custom 3D LUTs via USB for precise color workflows.

Comprehensive Video Assist Tools

Includes waveform, vectorscope, CIE scope, histogram, false color, zebra, and focus assist tools, enabling accurate exposure, focus, and color evaluation on set.

Professional Audio Monitoring

Supports up to 16-channel embedded audio meters with selectable output channels. Advanced tools like Lissajous pattern and 5.1/7.1 surround monitoring ensure precise audio analysis.

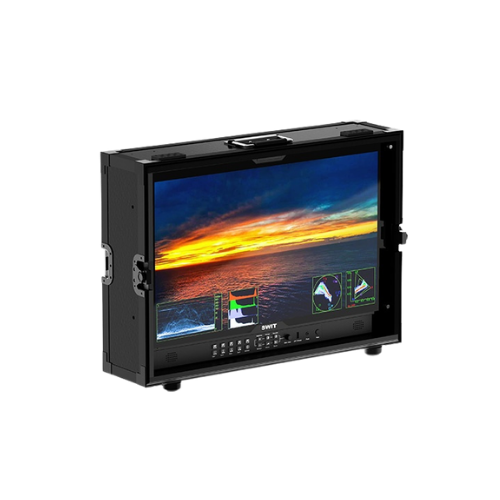

Rugged Field-Ready Design

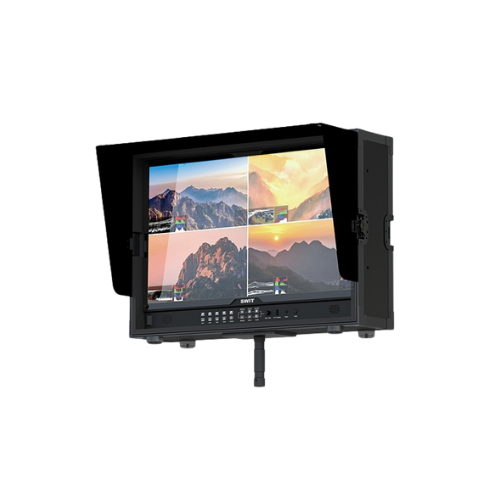

Comes pre-installed in a protective flight case with screen protector, sun hood, cheese plates, and light stand mounting support. Designed for demanding on-set environments.
