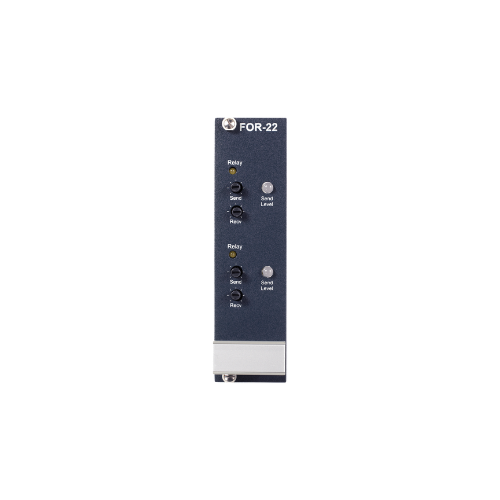

Clear-Com FOR-22 Dual 4-Wire / 2-Way Radio Relay Control Interface Module

Clear-Com FOR-22 Dual 4-Wire / 2-Way Radio Relay Control Interface Module

Clear-Com Matrix

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Key Features

Connects two external 4-wire communication circuits to the matrix
Ideal for integrating two-way radios, IFB systems, camera intercoms, and microwave links
Transformer-balanced audio for improved signal integrity
Adjustable output levels for flexible audio configuration
Supports relay control and call-sense signaling
Auto-discovering module for quick integration into Eclipse HX frames
Designed for professional broadcast and communication systems

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

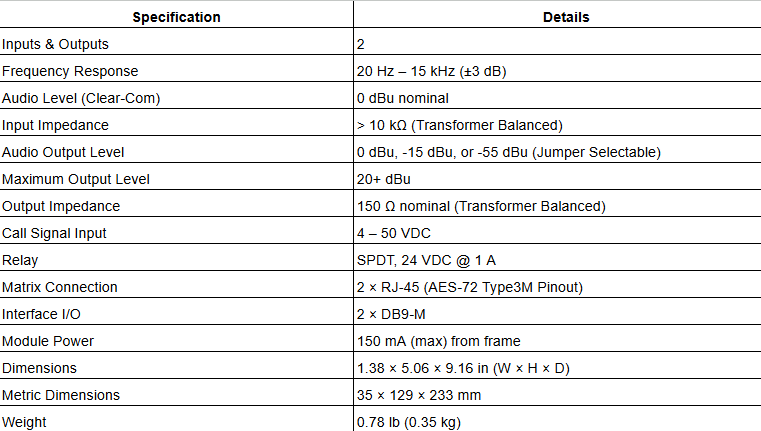

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

4-Wire Communication Integration

The FOR-22 Dual 4-Wire / 2-Way Radio Relay Control Interface Module enables seamless integration of external 4-wire communication circuits with the Eclipse HX Digital Matrix System. It allows two independent communication paths to be connected directly to the matrix system, expanding the overall communication network.

Ideal for Broadcast and Radio Applications

This module is commonly used to connect two-way radios, camera intercom systems, IFB feeds, and microwave communication links. Its design makes it suitable for demanding broadcast environments such as television studios, live event productions, and control rooms where reliable communication is essential.

Advanced Audio Processing and Isolation

The FOR-22 ensures high audio quality through transformer-balanced inputs and outputs, impedance matching, and adjustable signal levels. These features help maintain signal clarity while reducing interference between connected communication systems.

Relay Control and Call Signal Support

In addition to audio connectivity, the module supports external relay activation and call-sense signaling, allowing operators to trigger external equipment or monitor incoming communication signals. The module installs directly into compatible frames such as Median Frame, Delta Frame, Delta-Lite Frame, or the IMF-3 Interface Frame, and operates with the MVX-16A Interface Card for full functionality.
