FOR-A DSK-400 4K/HD Downstream Keyer Module

FOR-A Graphic Systems

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

4K UHD & HD Keying: Supports up to 1 4K UHD or 4 independent HD keying channels.
Flexible SDI Routing: Provides 12 SDI inputs and 8 outputs with hardware bypass pass-through.
Frame Sync & Still Stores: Enables direct keying of static graphics and un-genlocked FILL/KEY sources.
Optional 4K Chroma Key: Adds 4K chroma keying with the DSK-400CK option alongside Linear, Luminance, and Box Key.
Remote Control & Integration: Supports HVS-100OU panels, web GUI, RS-422, and up to 4 DSK-RU remote units.
Monitoring & Reference: Offers 1080p down-converted monitoring plus Black Burst, Tri-level Sync, and Line Lock support.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Enterprise 4K UHD & Multi-Channel HD Downstream Keying

The FOR-A DSK-400 is a high-density 4K/HD downstream keyer designed for broadcast master control, live graphics insertion, channel branding, and OB production vehicles. Housed in a robust chassis, the DSK-400 operates in either 4K UHD mode (supporting Quad-link 3G-SDI 2SI/Square Division) or HD mode, where it can function as four independent, full-featured downstream keyers within a single system.

Advanced Keying, Still Stores & Down-Conversion

Equipped with advanced Linear, Luminance, Box Mix, Key Invert, Gain, and Transparency controls, the DSK-400 allows seamless compositing over live background feeds. Internal Frame Synchronizers and Input Still Stores on all FILL and KEY inputs eliminate the need for external time-base correctors when inserting logos, lower-thirds, or emergency tickers. For legacy monitoring setups, the unit provides a dedicated 1080p HD down-converted output from incoming 4K program feeds.

Redundant Architecture & Unified Switcher Integration

Designed for continuous 24/7 broadcast operations, the DSK-400 features a standard passive hardware bypass relay to protect program output during power loss, alongside an optional DSK-400PSM redundant power supply. Broadcast engineers can manage the keyer via an intuitive web interface, RS-422 serial commands, or integrate it directly into existing production workflows using FOR-A HVS-100OU control panels or DSK-RU remote control hardware.

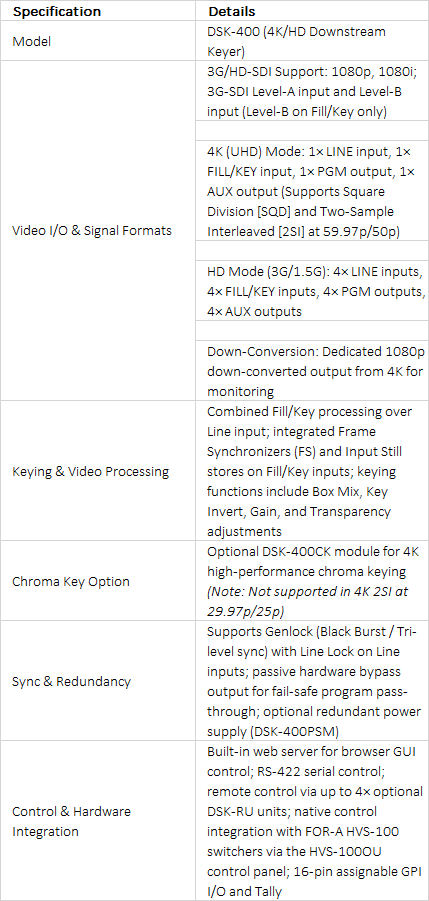

Technical Specifications +

technical specifications
