FOR-A ESG-4000 / ESG-4100 / ESG-4200 4K/HD Test Signal Generators

FOR-A Test Signal ・TC generators/VANC Modem

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

H.265/HEVC Compression: Delivers high-quality SD to 4K video at lower bitrates.
Compact 1U Half-Rack: Space-saving design for mobile and broadcast setups.
SD to 4K Support: Handles end-to-end encoding and decoding across formats.
IP & DVB-ASI Output: Enables simultaneous IP and DVB-ASI transmission.
Dual Encoding: Supports multiple bitrates and simultaneous streams.
Network Error Recovery: Maintains stable video over lossy IP networks.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Advanced 4K/HD Reference Signal Generation

The FOR-A ESG-4000 Series (ESG-4000, ESG-4100, and ESG-4200) comprises multi-format, high-precision test signal generators engineered for broadcast stations, OB trucks, display calibration facilities, and post-production suites. Capable of outputting both 4K UHD (3840x2160) and 4K DCI (4096x2160) signals alongside HD-SDI feeds, the series provides dual independent generator blocks (SG-1, SG-2) to verify multi-camera pipelines and routing matrices simultaneously.

Series Lineup & IP Connectivity

ESG-4000: Legacy 3G/HD-SDI test generator delivering dual 4K (3G-SDI x4) and triple HD-SDI output lines.
ESG-4100: 12G-SDI model distributing 12G/6G/3G/HD-SDI signals across four 4K 12G-SDI outputs and up to four HD-SDI outputs.
ESG-4200: Hybrid 12G-SDI and SMPTE IP generator supporting SMPTE ST 2110, ST 2022-6, and ST 2022-8 protocols alongside SDI, complete with PTP (Precision Time Protocol) synchronization.

Essential Broadcast Calibration & Metadata Editing

Equipped with built-in patterns—including color bars, pathological signals, crosshatch, multi-burst, and noise—the ESG series also supports custom user pattern uploads and PNG logo overlays. Broadcast engineers can edit 4-byte SMPTE payload IDs directly to test downstream compliance with HDR standards (PQ/HLG) and ITU-R BT.2020 color spaces. Integrated audio generation embeds 32 channels of PCM or custom WAV audio, backed by dual MADI interface outputs.

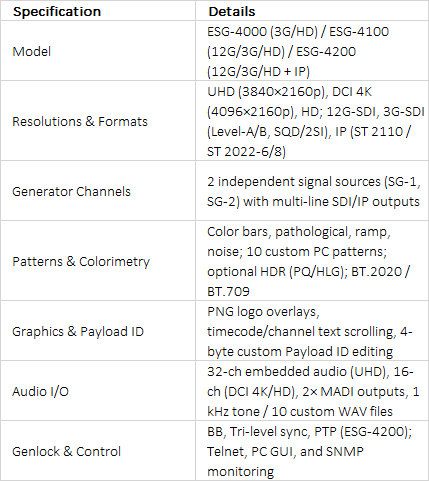

Technical Specifications +

technical specifications
