FOR-A ifCalib2 Camera Calibration Software for Virtual Production

FOR-A Virtual Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Engine Spatial Alignment: Calibrates 3D graphics with physical camera views across multiple render engines.
4-System Output Matrix: Processes calibrated tracking and positioning data for up to 4 concurrent camera systems.
Flexible Data Routing: Customizable tracking matrix enables combining and routing multi-sensor positional data.
Lens & Camera Calibration: Corrects lens distortion, adjusts FOV, and fine-tunes camera position offsets in real time.
Timecode Tracking Logs: Records raw sensor tracking data with embedded timecodes for post-production VFX alignment.
Multi-Protocol Support: Supports FreeD, Mo-Sys F4, and proprietary protocols over UDP or RS-422, with Process and Control modules.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

Precision Real-Time Camera Calibration for Virtual Studios

FOR-A ifCalib2 is an advanced camera calibration software solution designed to bridge physical studio cameras with real-time 3D graphics rendering engines. By calculating exact optical focal lengths, sensor spatial offsets, and lens distortion parameters, ifCalib2 ensures perfect alignment and scale matching between real-world video signals and virtual environments across green-screen virtual studios, augmented reality (AR) broadcasts, and XR stages.

Advanced Matrix Data Processing & Multi-System Playout

Built around a flexible data input/output matrix, ifCalib2 allows operators to combine multiple sensor feeds and route calibrated tracking data to up to 4 independent system outputs simultaneously. The software allows fine-tuning of Field of View (FOV) parameters, positional XYZ offsets, and rotational values before re-broadcasting the refined stream over UDP Ethernet networks or RS-422 serial connections.

Dual-Module Architecture & Post-Production Logging

The software operates on a dual-license architecture comprising ifCalib2 Proc for background data processing and high-throughput routing, and ifCalib2 Cont for user interface setup, scene configuration, and calibration adjustments. For hybrid live-to-tape and post-production workflows, ifCalib2 logs raw sensor tracking data with embedded broadcast timecodes, giving visual effects teams frame-accurate tracking data for offline post-rendering.

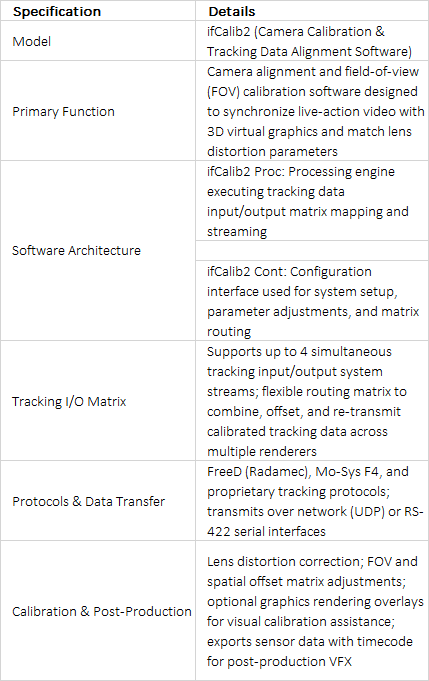

Technical Specifications +

technical specifications
