FOR-A USF-1013DEMUX 3G/HD/SD-SDI Digital Audio Demultiplexer Card

FOR-A Virtual Production

Professional broadcast product designed for reliable production, streaming, and modern media workflows.

Genuine
Product

Official
Warranty

Technical
Support

Fast
Delivery

Key Features

Multi-Rate SDI Compatibility: Supports auto-sensing 3G, HD, and SD-SDI with reclocked output.
AES/EBU Audio De-embedding: Extracts embedded SDI audio to discrete unbalanced AES/EBU outputs.
Audio Gain & Level Control: Provides precision adjustment of extracted audio channels.
Selectable LTC / AES Input: Configurable BNC input supports LTC or AES/EBU channels 7/8.
Network & SNMP Monitoring: Enables remote status monitoring and management via USF frame control.
USF Modular Design: Hot-swappable module compatible with FOR-A USF-105AS and USF-212BS frames.

Pricing Dhs. 0.00

Request a Quote

Secure checkout. Authorized partner. 100% genuine products.

Details that matter

Features & Specifications

Explore the features, technical details, and everything you need to know about this product.

Need help choosing? Talk to our experts →

Product Overview +

SDI Digital Audio De-Embedding

The FOR-A USF-1013DEMUX is a dedicated digital audio demultiplexer module engineered for FOR-A USF series universal system frames. Supporting 3G-SDI, HD-SDI, and SD-SDI formats, the module extracts embedded digital audio from an incoming SDI program feed and outputs the demultiplexed audio as discrete AES/EBU signals via rear panel BNC connections.

Signal Processing & Flexible Auxiliary I/O

Beyond simple audio extraction, the USF-1013DEMUX incorporates internal digital signal processing for gain adjustments across audio channels. The board features an auxiliary BNC port that can be configured via software control to accept either Longitudinal Timecode (LTC) for system synchronization or an additional AES/EBU input (channels 7/8).

USF Frame Integration & Remote Health Monitoring

Designed for high-density broadcast environments, the module operates within 1RU (USF-105AS) or 2RU (USF-212BS) frame chassis, utilizing redundant power paths. Operational status, signal lock, and parameter settings can be monitored remotely via SNMP protocols or through the USF frame's graphical management interface.

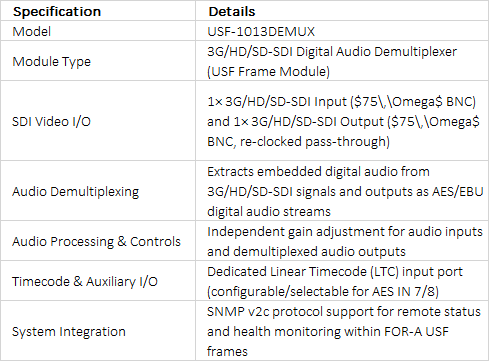

Technical Specifications +

technical specifications
